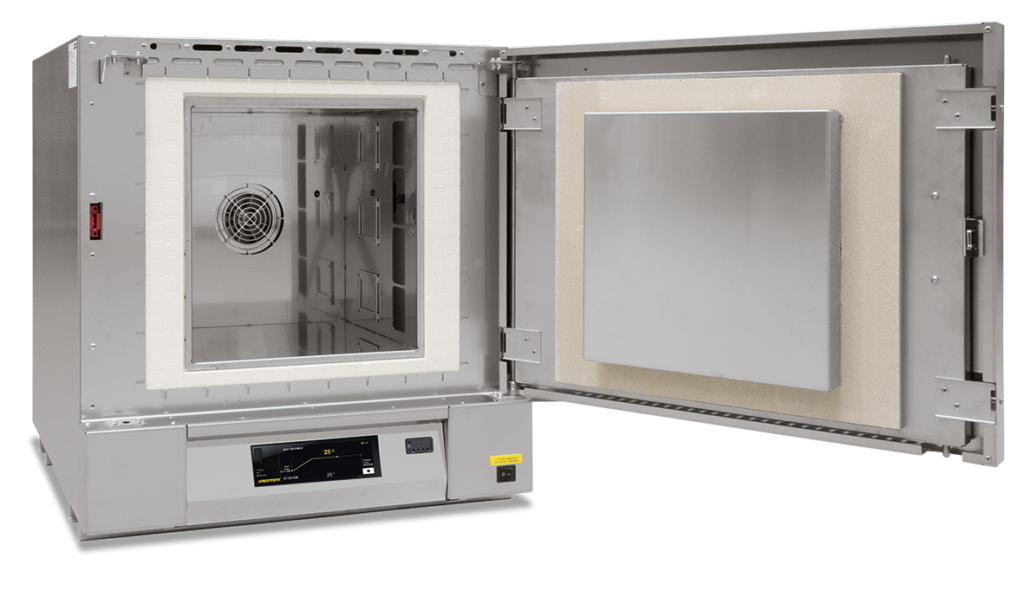

Nabertherm Hogetemperatuuroven NAT 60/65 met C540 Regelaar
These chamber furnaces with air circulation are characterized by their extremely high temperature uniformity
Hence, they are especially suitable for processes such as annealing, crystalizing, preheating, curing, but also for numerous processes in tool making
Due to the modular concept, the forced convection furnaces can be adjusted to the process requirements by adding suitable equipment.
Standard Equipment:
Tmax 450 °C, 650 °C, or 850 °C

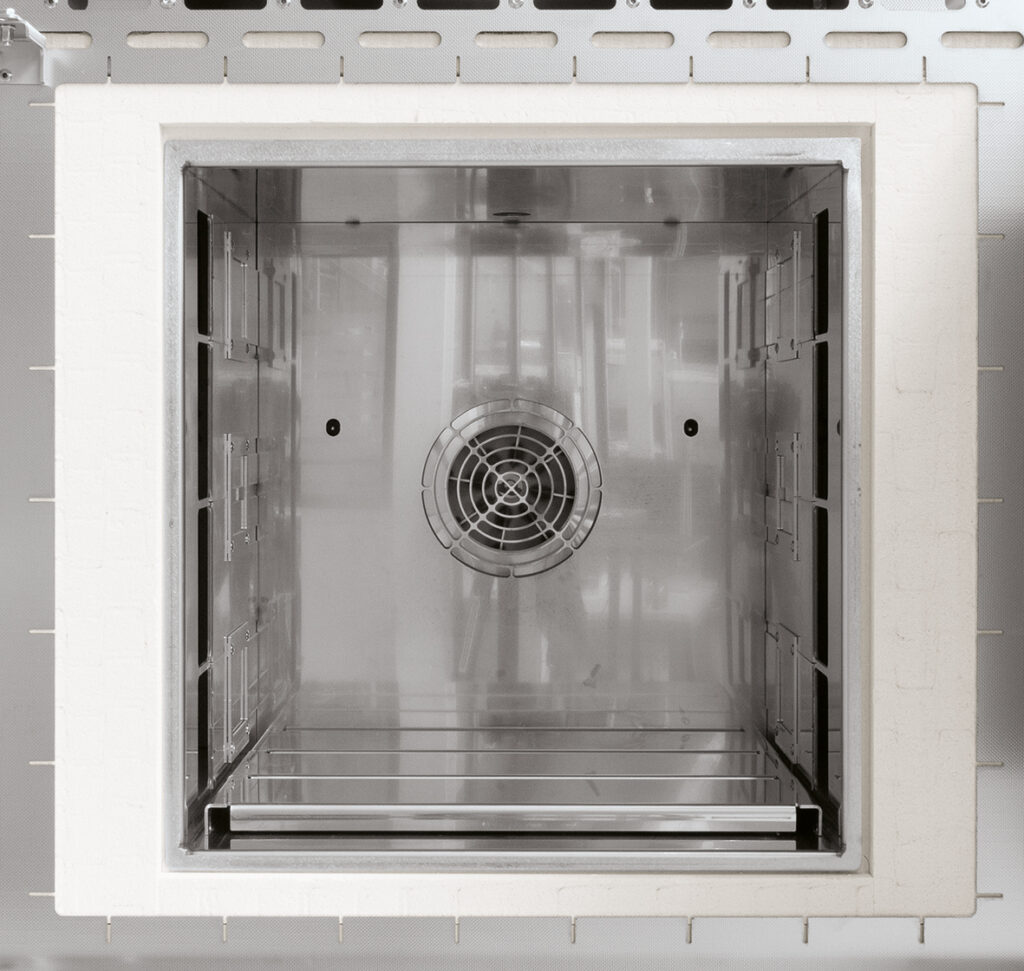

Horizontal air circulation with optimum distribution through stainless steel baffles
Swing door hinged on the right
Temperature uniformity up to +/− 4 °C according to DIN 17052-1 (NAT 15/65 and NAT 30/85 up to +/− 5 °C) in the empty work space
One frame sheet and rails for two additional trays included in the scope of delivery (NAT 15/65 and NAT 30/85 without frame sheet)
Base frame included in the delivery, NAT 15/65 and NAT 30/85 designed as table-top model
Controller B400/B410 (5 programs with each 4 segments), alternative controllers available
Additional Equipment:
Optimization of the temperature uniformity up to +/− 3 °C according to DIN 17052-1 in the empty work space
Air inlet and exhaust air flaps when used for drying
Controlled fan assisted cooling
Manual lift door (up to model NA 120/..)
Pneumatic lift door
Air circulation with speed control, recommendable for processes with light or sensitive charge
Additional frame sheet
Gas supply boxes different charging methods
Feed and charging aids
Charge control with documentation of the charge thermocouple
| Volume kamer (L) | 60 L |
| Temperatuurbereik | 650 °C |

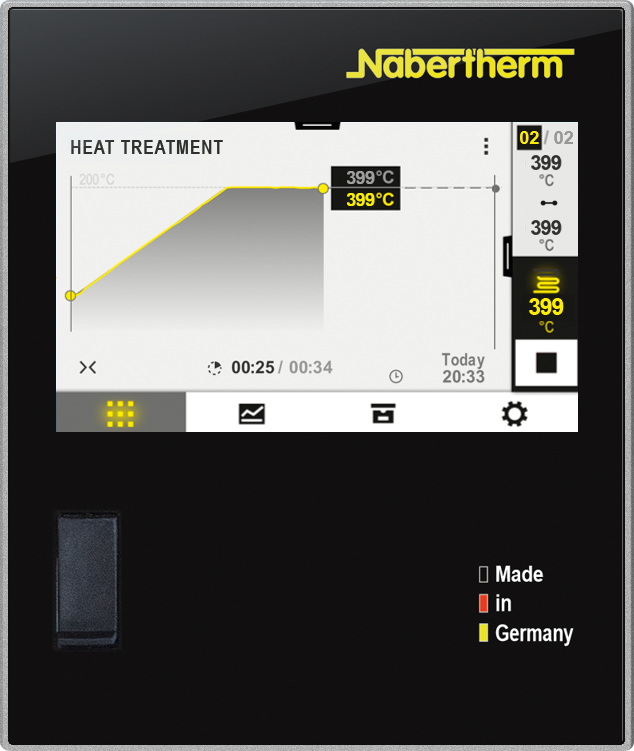

| Regelaar | C540 |
| Soort opening | Schuifdeur |
These chamber furnaces with air circulation are characterized by their extremely high temperature uniformity
Hence, they are especially suitable for processes such as annealing, crystalizing, preheating, curing, but also for numerous processes in tool making
Due to the modular concept, the forced convection furnaces can be adjusted to the process requirements by adding suitable equipment.
Standard Equipment:
Tmax 450 °C, 650 °C, or 850 °C
Horizontal air circulation with optimum distribution through stainless steel baffles
Swing door hinged on the right
Temperature uniformity up to +/− 4 °C according to DIN 17052-1 (NAT 15/65 and NAT 30/85 up to +/− 5 °C) in the empty work space
One frame sheet and rails for two additional trays included in the scope of delivery (NAT 15/65 and NAT 30/85 without frame sheet)
Base frame included in the delivery, NAT 15/65 and NAT 30/85 designed as table-top model
Controller B400/B410 (5 programs with each 4 segments), alternative controllers available
Additional Equipment:
Optimization of the temperature uniformity up to +/− 3 °C according to DIN 17052-1 in the empty work space
Air inlet and exhaust air flaps when used for drying
Controlled fan assisted cooling
Manual lift door (up to model NA 120/..)
Pneumatic lift door
Air circulation with speed control, recommendable for processes with light or sensitive charge
Additional frame sheet
Gas supply boxes different charging methods
Feed and charging aids
Charge control with documentation of the charge thermocouple
