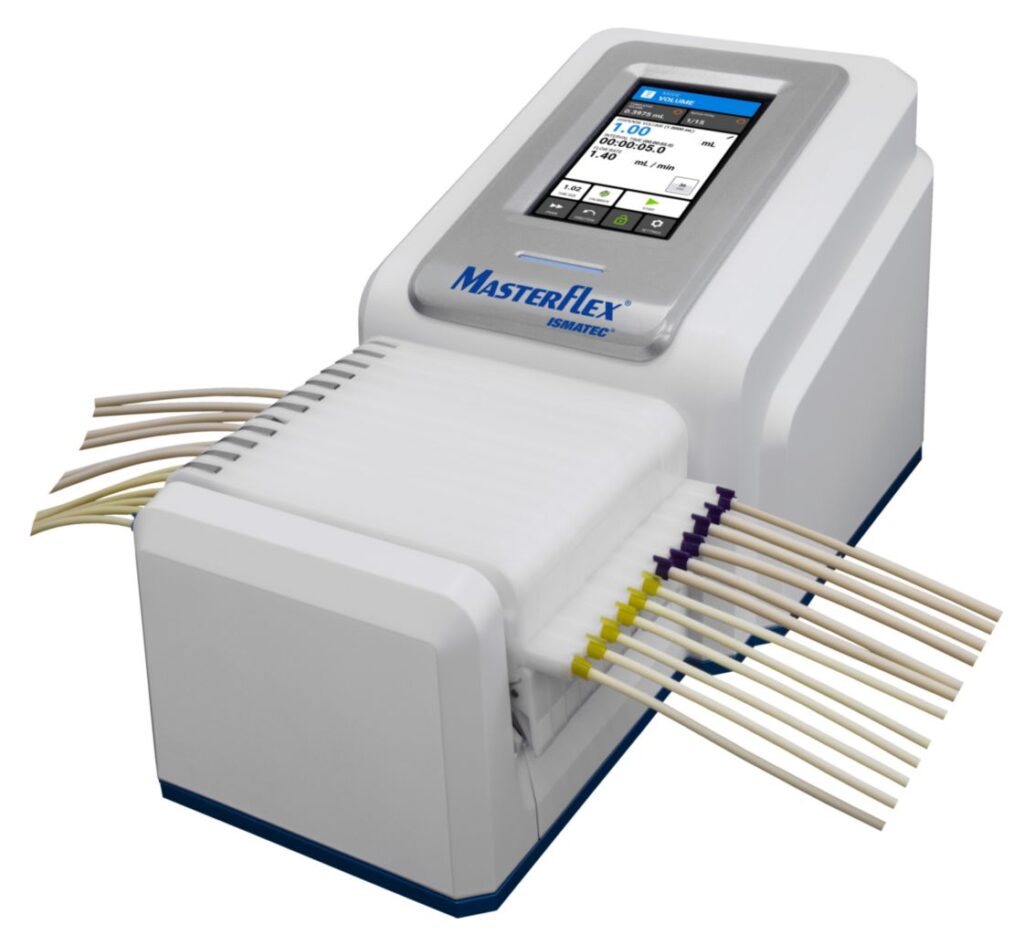

Masterflex Peristaltische pomp met 12 kanalen IPC 78006-24

Merk: Masterflex

Referentie: 78006-24

Achieve high-accuracy multi-channel flow, with an intuitive touch-screen interface

Replicate same flow for all channels

perfect for auto-analysis, reactor studies, cell line seeding, and research

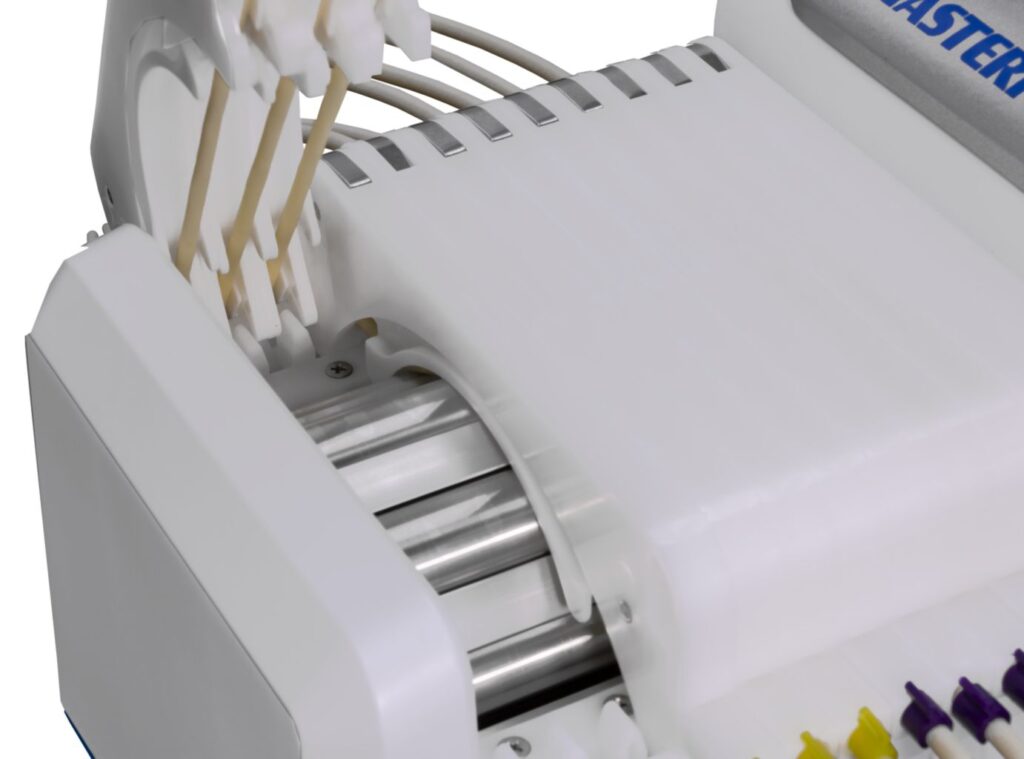

Planetary drive with 8 stainless steel rollers reduces pulsation, increases flow rate accuracy, and lengthens tubing life

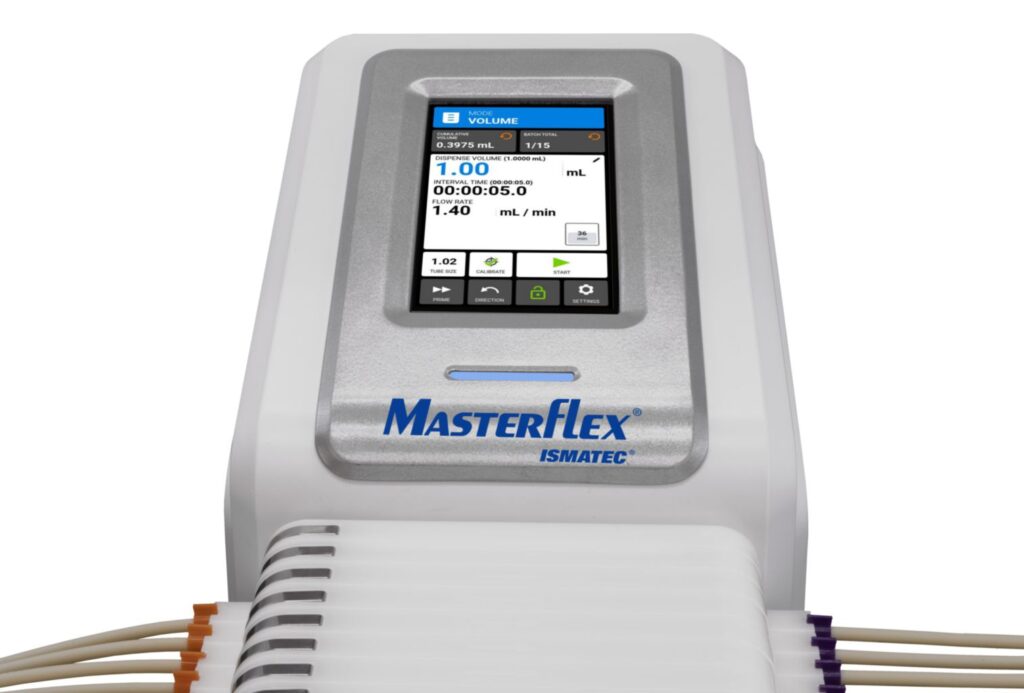

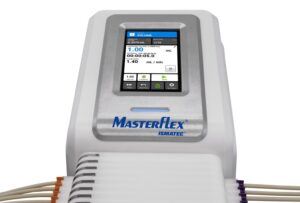

12,7 cm (5") capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle

Flexible operational control via screen or remote control (analog remote control, serial, or EtherNet/IP)

Three-level user access – gives you the option of controlling who can operate the pump and at what level

Pump lets you save and retrieve commonly used dispense programs for rapid set up

Continuous run, volume dispense, and time dispense modes

batch control and interval/off time in volume and time modes

These Ismatec® IPC multichannel pumps feature planetary gears that drive eight stainless steel rollers in unison for smooth rotation and accurate liquid flow

The intuitive touchscreen display shows flow rate or RPM (min⁻¹), allows for easy calibration, features configurable volume or time dispense modes, and lets you save and recall up to 50 programs

Volumetric dispensing features a unique roller positioning system to ensure repeatability

Mix and match tubing sizes and formulations across the channels to suit your application

Included Click’n’go cartridges feature automatic occlusion for simplified use, fewer tubing changes, and reproducible results

Optional pressure lever cartridges offer you the opportunity to manually adjust the back pressure experienced by the tubing / pump combination (order separately)

Pumps feature a variety of built in options for remote communications

EtherNet/IP control is available via RJ45

RS-232 serial control is available via a DB9 interface or USB port (USB use requires cable 78006-90)

A 25-pin connector allows analog input and output controls

Meer lezen

Maximaal debiet (ml/min): 528

Aantal kanalen: 12

Snelheid: 11.25 rpm

4 varianten beschikbaar

€7.410,00 Excl. BTW

€8.966,10 Incl. BTW

Levertijd op aanvraag

Gratis levering v.a. € 400 in webshop

Voordelige prijzen

Vijfsterrenservice voor & na verkoop

Levering 1 à 3 dagen voor stockartikelen

Maximaal debiet per kanaal	11 ml/min
Snelheid	11.25 rpm
Aantal kanalen	12
Aantal rollers	8
Max. druk	1 Bar (17,7 PSI) met Click N Go Cartridges, 2 Bar (LVR-druk)
Zuiging	>15" in Hg (afhankelijk van buis en grootte)
Bedieningsmodi	Continue werking, Volumedosering, Tijdsdoserings, Op afstand
Omkeerbare motor	Ja
Verbindingen	EtherNet/IP (RJ45), Serial (RS-232 via 9-pin Sub D of USB-A), Analoog I/O (25-pin Sub D)
Externe bediening (input)	0 tot 20 mA, 4 tot 20 mA, 0 tot 10V, 0 tot 5V, Start/Stop, Direction (CW/CCW), Prime via contact closure
Externe bediening (output)	0 tot 20 mA, 4 tot 20 mA, 0 tot 10V, 0 tot 5V, Tach output 5V TTL pulse, Drive running, Alarm status
Wifi-verbinding	Ja
Werkt met buizen	Ismatec 2-Stopsbuizen met interne diameter (mm): 0,13 - 0,19 - 0,25 - 0,38 - 0,51 - 0,76 - 1,02 - 1,42 - 1,52 - 1,85 - 2,03 - 2,29 - 2,79 - 3,17
Voltage (50/60 Hz)	90 - 260 VAC adapter (24V DC)
Stroom	1,2A @ 120 VAC \| 0,6A @ 230 VAC
Type motor	Geborstelde PMDC motor
Display	5" Aanraakdisplay
Snelheidsregeling	± 1% Full Scale
Materiaal behuizing	ABS kunststof, geanodiseerd aluminium
Materiaal rollers	Inox, geanodiseerd aluminium
IP-Bescherming	IP31
Agency listings	UL, cUL, CE, RoHS
Casettes	POM Click'N'Go cartridges (PVDF & pressure lever cassettes optioneel)
Bedieningstemperatuur	0 - 40 °C
Opslagtemperatuur	-25 - 65 °C
Geluidsniveau	< 55 dBA @ 1 m (39")
Afmetingen (H x L x B)	200,5 x 391,2 x 193 mm
Gewicht	6,1 kg
