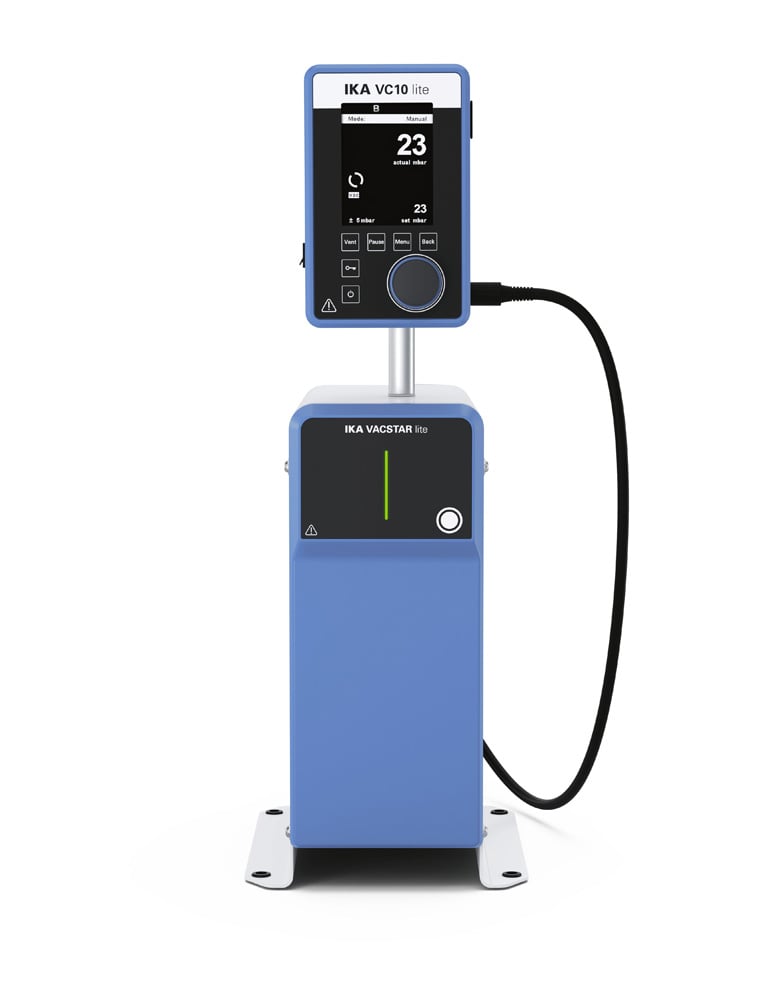

IKA Vacuümpomp VACSTAR lite Advanced Plus Solution
The VACSTAR lite Advanced Plus Solution package is a modern, user and environmentally friendly solution for your vacuum applications in the laboratory
By combining the VC 10 pro vacuum controller with the VACSTAR lite vacuum pump, automatic boiling point detection is available via the integrated solvent library
The desired setpoint can also be conveniently set manually via the large, easy-to-read TFT display
In addition, the program mode enables the simple programming of several ramp steps in order to efficiently control complex simulations
The VSE 1 emission condenser prevents solvents from being released into the room air, thus protecting users and the environment
Perfectly suited for a variety of classic laboratory applications, including separation, filtration and drying processes
Ideal for use in conjunction with rotary evaporators, reactors, tempering chambers, centrifuges and other laboratory equipment
Automatic boiling point detection: Automatically determines and maintains the boiling point of your solvent using the integrated solvent library with pre-configured parameters for common solvents
Integrated device communication: The vacuum controller seamlessly synchronizes with circulators, resulting in optimized lab operations and increased overall performance
Longer life cycle: An integrated valve cleaning function removes residual solvent, extending system life and reducing maintenance
USB/RS232 interfaces: These allow connection to labworldsoft laboratory software for advanced process control
Increased safety: The VSE 1 emission condenser ensures increased user safety by preventing solvent residues from entering the room air
| Pump rate max. (50/60Hz) [m³/h] | 1 |
| Pump rate max. (50/60Hz) [l/min] | 16.67 |
| Final pressure without gas ballast [mbar] | 9 |
| Suction levels | 2 |
| Cylinder | 2 |
| Connection diameter suction side [mm] | 8 |
| Connection diameter pressure side [mm] | 8 |
| Gas ballast valve | no |
| Input pressure [mbar] | 10 - 1030 |
| Boiling point detection | yes |
| Solvent library | yes |
| Two-point control | yes |
| Analog speed vacuum control | yes |
| Speed range [rpm] | 285 - 1100 |
| Speed (50Hz) [rpm] | 1100 |
| Speed (60Hz) [rpm] | 1100 |
| Nominal speed [rpm] | 1100 |
| Display | TFT |
| Pressure unit / scale | mbar, hPa, mmHg, Torr |
| Vacuum sensor | yes |
| Vacuum sensor type | ceramic Al2O3 |
| Pressure max. for pressure sensor [bar] | 1.6 |
| Measurement range (absolute) [mbar] | 1 - 1100 |
| Control range [mbar] | 1 - 1100 |
| Resolution pressure [mbar] | 1 |
| Measurement uncertainty [mbar] | 1 |
| Medium temperature (gas) [°C] | 5 - 40 |
| Vacuum valve | yes |
| Venting valve | yes |
| Condensate trap | no |
| Emission condenser | yes |
| Connection for ext. temperature sensor | PT1000 |
| Temperature unit | °C / °F |
| Temperature measuring range [°C] | -10 - 200 |
| Temperature measurement resolution [K] | 1 |
| Accuracy of temperature measurement [K] | ±1 |
| Timer | yes |
| Time setting min. [s] | 1 |
| Time setting max. [min] | 6000 |
| Noise at low. pressure [dB(A)] | 54 |
| Material in contact with medium | Al2O3; PTFE; FFPM; PPS; NBR |
| Housing material | alu-cast coating / thermoplastic polymer |
| Clean room qualified | no |
| Explosion proofed | no |
| Mode automatic | yes |
| Mode manual | yes |
| Mode pump % | yes |
| Mode program | yes |
| Graph function | yes |
| Chiller control | yes |
| Vacuum leakage test | yes |
| Dimensions (W x H x D) [mm] | 260 x 502 x 377 |
| Weight [kg] | 11.2 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity | 80% (up to 31°C), decreasing linearly to max. 50 (@40°C) |
| Protection class according to DIN EN 60529 | IP 20 |
| RS 232 interface | yes |
| RS 485 interface | no |
| USB interface | USB-C |
| WPAN interface | no |
| WiFi Interface | no |
| Ethernet interface | no |
| Analog output | yes |
| Analog input | yes |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 144 |
| Power input standby [W] | 3.5 |
| Fuse | 2x T4A 250V |
The VACSTAR lite Advanced Plus Solution package is a modern, user and environmentally friendly solution for your vacuum applications in the laboratory
By combining the VC 10 pro vacuum controller with the VACSTAR lite vacuum pump, automatic boiling point detection is available via the integrated solvent library
The desired setpoint can also be conveniently set manually via the large, easy-to-read TFT display
In addition, the program mode enables the simple programming of several ramp steps in order to efficiently control complex simulations
The VSE 1 emission condenser prevents solvents from being released into the room air, thus protecting users and the environment
Perfectly suited for a variety of classic laboratory applications, including separation, filtration and drying processes
Ideal for use in conjunction with rotary evaporators, reactors, tempering chambers, centrifuges and other laboratory equipment
Automatic boiling point detection: Automatically determines and maintains the boiling point of your solvent using the integrated solvent library with pre-configured parameters for common solvents
Integrated device communication: The vacuum controller seamlessly synchronizes with circulators, resulting in optimized lab operations and increased overall performance
Longer life cycle: An integrated valve cleaning function removes residual solvent, extending system life and reducing maintenance
USB/RS232 interfaces: These allow connection to labworldsoft laboratory software for advanced process control
Increased safety: The VSE 1 emission condenser ensures increased user safety by preventing solvent residues from entering the room air
