IKA Labworldsoft® 6 Screening System
€1.362,00

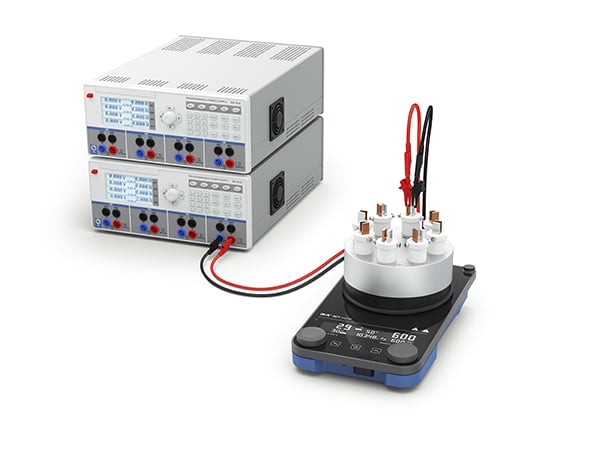

IKA Screening System Package (8 Cells) Electrochemiekit
The IKA Screening System is perfectly suited for constant current electrosynthesis in “multibatch” mode
The package with 8 undivided batch cells enables you to quickly carry out research on multiple electroconversions at the same time
In addition, you can combine the system with other equipment in the laboratory
The usage of the single-cell screening system allows you to customize each reaction cell
The operator is able to individually pre-set an applied voltage of 0 – 32 V or 0 – 10 A current by using two voltage sources, each providing four outputs
Every reaction cell can be equipped with electrodes made of either different or the same electrode material
This depends strongly on the electro synthesis envisioned
All cells are arranged in a heating block that, if necessary, is heated up by a magnetic stirrer belonging to the scope of delivery
An external PT 1000 temperature sensor ensures the monitoring and control of the exact heating block temperature
Up to 8 undivided cells can be operated simultaneously and individually
Synthesize sufficient quantities for GC, LC or NMR analysis processes
Separate control and pre-set for each cell
Easy testing of identical or differing electrolysis runs
Fast identification of ideal process parameters
Digital recording of test parameters
Simultaneous mixing and heating
Full temperature control (PT 1000) using heat block
Control and automation via Labworldsoft 6.0
Time and resources savings
| Diameter [mm] | 150 |
| Volume max. [l] | 0.160 |
| Material in contact with medium | PTFE |
| Number of chambers for vials | 8 |
| Weight [kg] | 24.9 |
| Permissible ambient temperature [°C] | 5 - 200 |
| RS 232 interface | yes |
| USB interface | no |
| Analog output | yes |
| Voltage [V] | 230 / 115 |
| Frequency [Hz] | 50/60 |
The IKA Screening System is perfectly suited for constant current electrosynthesis in “multibatch” mode
The package with 8 undivided batch cells enables you to quickly carry out research on multiple electroconversions at the same time
In addition, you can combine the system with other equipment in the laboratory
The usage of the single-cell screening system allows you to customize each reaction cell
The operator is able to individually pre-set an applied voltage of 0 – 32 V or 0 – 10 A current by using two voltage sources, each providing four outputs
Every reaction cell can be equipped with electrodes made of either different or the same electrode material
This depends strongly on the electro synthesis envisioned
All cells are arranged in a heating block that, if necessary, is heated up by a magnetic stirrer belonging to the scope of delivery
An external PT 1000 temperature sensor ensures the monitoring and control of the exact heating block temperature
Up to 8 undivided cells can be operated simultaneously and individually
Synthesize sufficient quantities for GC, LC or NMR analysis processes
Separate control and pre-set for each cell
Easy testing of identical or differing electrolysis runs
Fast identification of ideal process parameters
Digital recording of test parameters
Simultaneous mixing and heating
Full temperature control (PT 1000) using heat block
Control and automation via Labworldsoft 6.0
Time and resources savings
