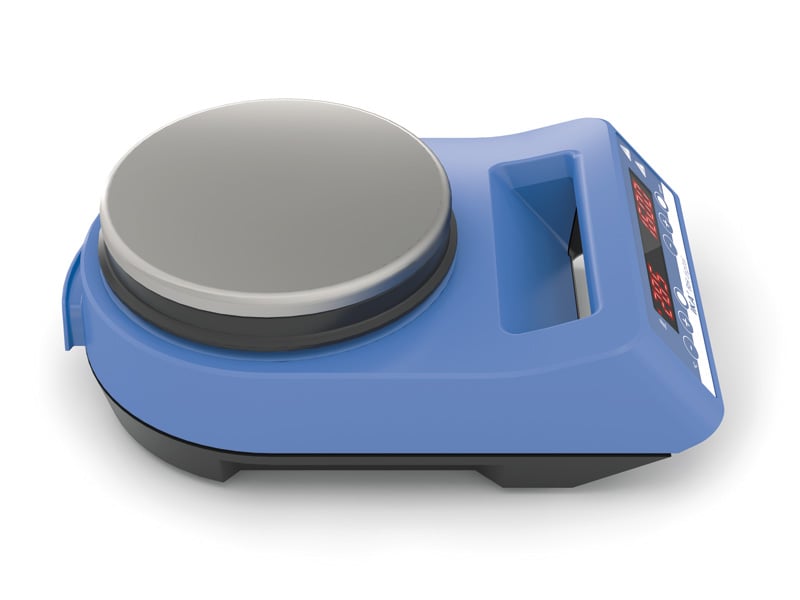

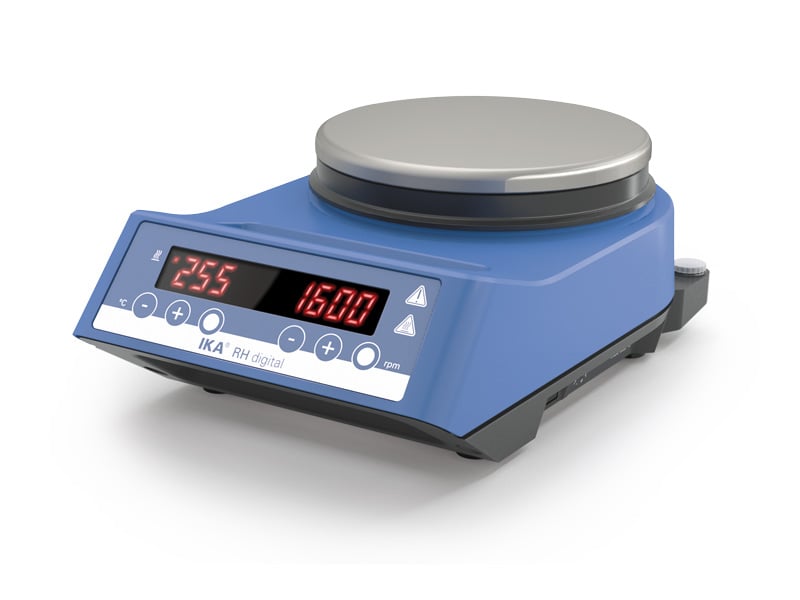

Innovatively designed digital magnetic stirrer with heating
Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5
Highly accurate temperature control is possible with sensor placed directly in the medium
A high heat output of 600 watts and stainless steel compound hot plate ensures rapid heating
Adjustable safety temperature from 100 to 360 °C
Digital display of temperature and speed
Soft-start of stirring motor
Strong magnetic field and wide speed range for volumes up to 15 liters
Error code display
Easy operation with touch keypad
Afmetingen plaat | Ø 135 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter plaat (Ø) | 135 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 15 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 100 - 2.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verwarming (ja/nee) | Ja | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verwarmingstemperatuur | 50 - 320 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verwarmingsvermogen | 600 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) [l] | 15 |
Motor rating output [W] | 2 |
Direction of rotation | left |
Speed display set-value | LED |
Speed adjustment | Button |
Speed range [rpm] | 100 - 2000 |
Setting accuracy speed [rpm] | 50 |
Stirring bar length [mm] | 20 - 80 |
Self-heating of the set-up plate by max. stirring (RT | 22°C/duration |
Heat output [W] | 600 |
Temperature display set-value | LED |
Temperature unit | °C |
Heating temperature range [°C] | 50 - 320 |
Heat control | Button |
Temperature setting range [°C] | 50 - 320 |
Heating rate heating plate [K/min] | 6 |
Connection for ext. temperature sensor | ETS-D5 |
Adjustable safety circuit [°C] | 100 - 360 |
Set-up plate material | stainless steel 1.4301 |
Set-up plate dimensions [mm] | Ø 135 |
Automatic reverse rotation | Nee |
Intermittent mode | Nee |
Viscosity trend measurement | Nee |
Break detection stirring bar | Nee |
Timer | Nee |
pH measurement | Nee |
Graph function | Nee |
Programs | Nee |
Sensor in medium detection (Error 5) | Nee |
Weighing function | Nee |
Dimensions (W x H x D) [mm] | 160 x 100 x 250 |
Weight [kg] | 3.845 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | Nee |
USB interface | Nee |
Analog output | Nee |
Voltage [V] | 230 |
Frequency [Hz] | 50/60 |
Power input [W] | 620 |
Innovatively designed digital magnetic stirrer with heating
Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5
Highly accurate temperature control is possible with sensor placed directly in the medium
A high heat output of 600 watts and stainless steel compound hot plate ensures rapid heating
Adjustable safety temperature from 100 to 360 °C
Digital display of temperature and speed
Soft-start of stirring motor
Strong magnetic field and wide speed range for volumes up to 15 liters
Error code display
Easy operation with touch keypad
