Ika ICC basic eco 18

Merk: IKA
Referentie: 0008035000
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories
Package includes

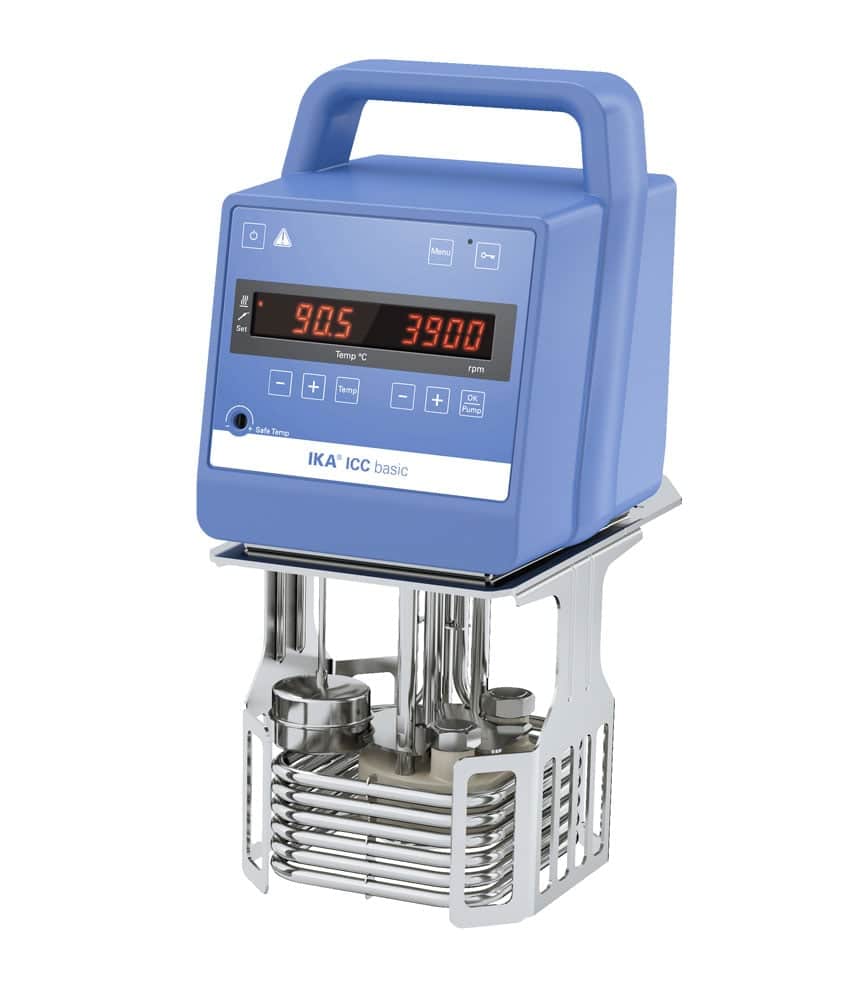

ICC basic Compact Immersion Circulator

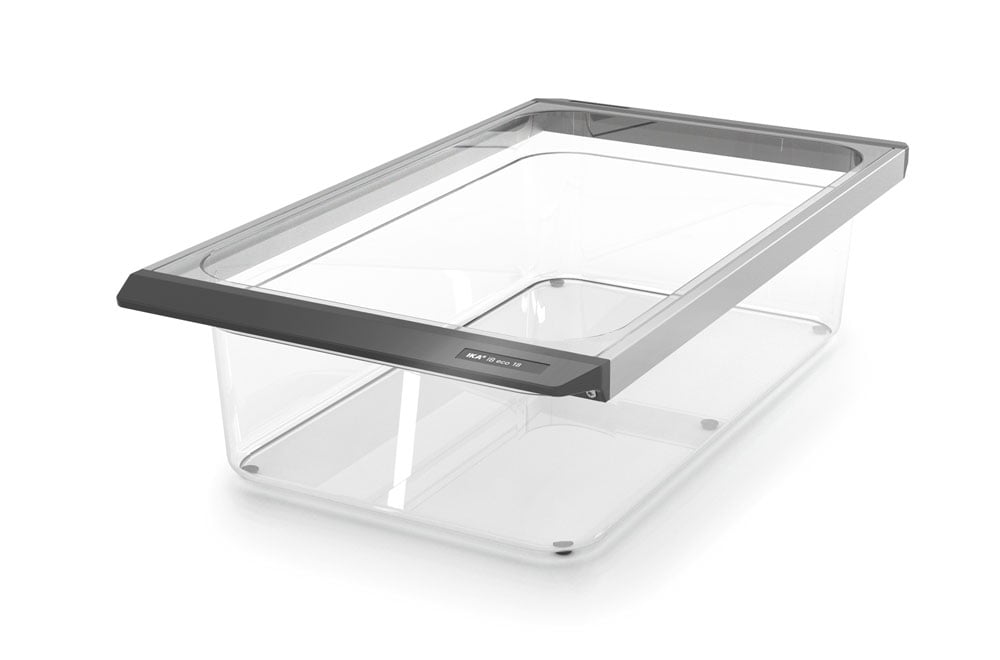

IB 18 eco Plastic bath (size L)

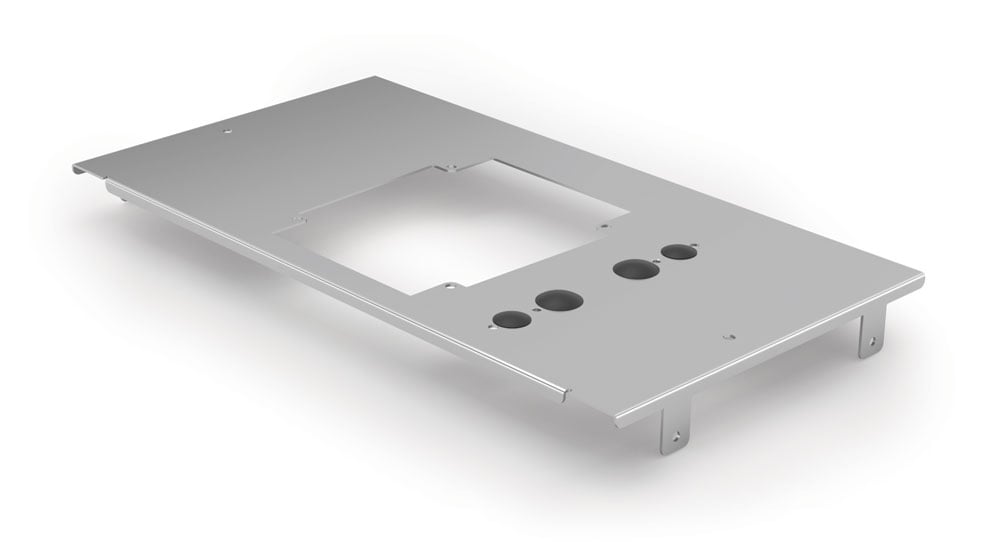

BL.ICC Large bridge
total: 338 x 584 x 349 mm
bath opening: 245 x 305 mm *
max
bath opening:  286 x 325 mm **
Immersion depth
85 mm–125 mm
*Dimensions to set plate at the bottom of bath
** Maximum bath opening dimensions at the upper edge of the bath
Max
temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
2.118,00 Excl. BTW
2.562,78 Incl. BTW
Levertijd op aanvraag
Gratis levering v.a. € 400 in webshop
Voordelige prijzen
Vijfsterrenservice voor & na verkoop
Levering 1 à 3 dagen voor stockartikelen
Debiet (L/min)18 L/min
Temperatuurbereik (°C)(room T°+10°C) - 100 °C
Verwarmingsvermogen (W)2.000 W
Technische data
Appliance type Compact immersion circulators
Class designation acc. DIN 12876 III
Identification according to DIN 12876 FL
Heat output [W] 2000
Working temperature [°C] room temp. +10K @1000rpm - 150
Operating temperature min. (with external cooling) [°C] -20
Temperature display Ja
Temperature control PT 100
Working temperature sensor PT 100
Safety temperature sensor PT1000
Working temperature display LED
Safety temperature display LED
Temperature stability DIN 12876 [K] ±0.02
Display resolution [K] 0.1
Display for operation with ext. sensor Ja
Set temperature resolution [K] ±0.1
Warning function optical Ja
Warning function acoustic Ja
Warning function excess temperature Ja
Warning function insufficient temperature Nee
Adjustable safety circuit [°C] 0 - 160
Sub-level protection Ja
Over-level protection Ja
Pump type Pressure- / suction pump
Pump capacity adjustable Ja
Pump pressure max. (0 liters discharge flow) [bar] 0.3
Pressure pump (suction side) (0 liter flow) [bar] 0.2
Flow rate max. (0 bar back pressure) [l/min] 18
Bath depth min. [mm] 150
Calibration option Ja
Appliance fastener clamp
Technical data complies with the standard DIN 12876
Permissible ON time [%] 100
Dimensions (W x H x D) [mm] 145 x 340 x 200
Weight [kg] 11.93
Permissible ambient temperature [°C] 5 - 40
Permissible relative humidity [%] 80
Protection class according to DIN EN 60529 IP 21
RS 232 interface Ja
USB interface Ja
Voltage [V] 230
Frequency [Hz] 50/60
Power input [W] 2100
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories
Package includes
ICC basic Compact Immersion Circulator
IB 18 eco Plastic bath (size L)
BL.ICC Large bridge
total: 338 x 584 x 349 mm
bath opening: 245 x 305 mm *
max
bath opening:  286 x 325 mm **
Immersion depth
85 mm–125 mm
*Dimensions to set plate at the bottom of bath
** Maximum bath opening dimensions at the upper edge of the bath
Max
temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
