Ika ICC basic eco 8
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories
Package includes

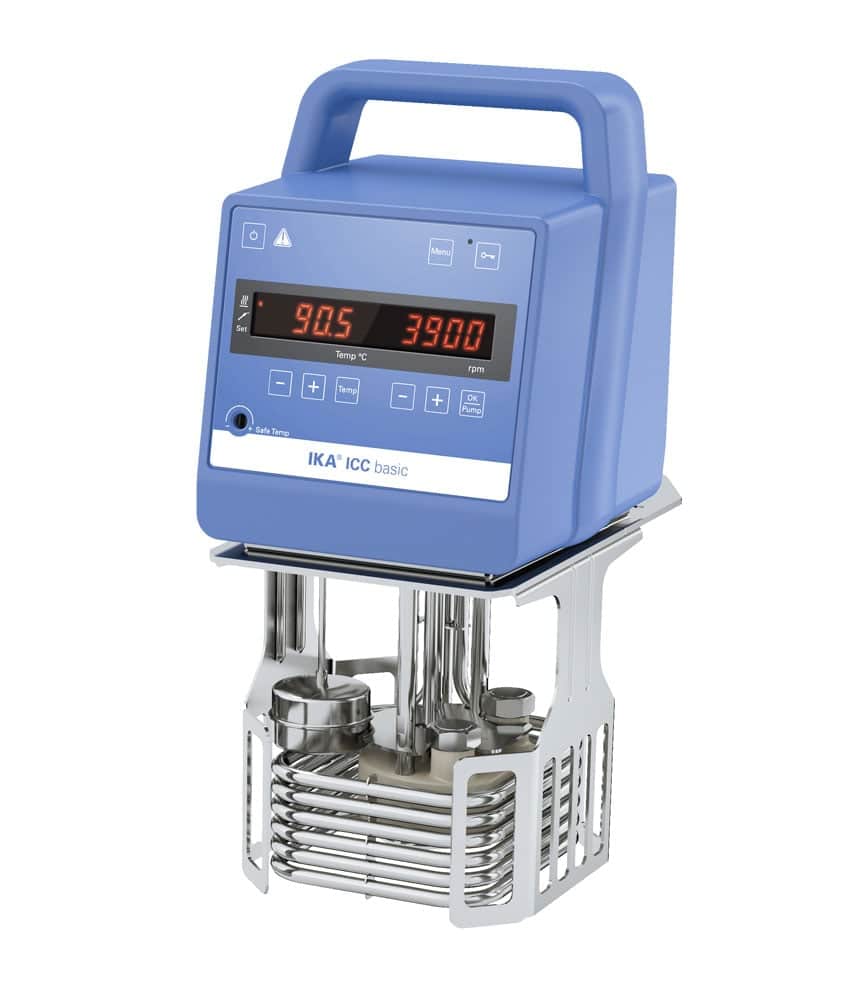

ICC basic compact immersion circulator

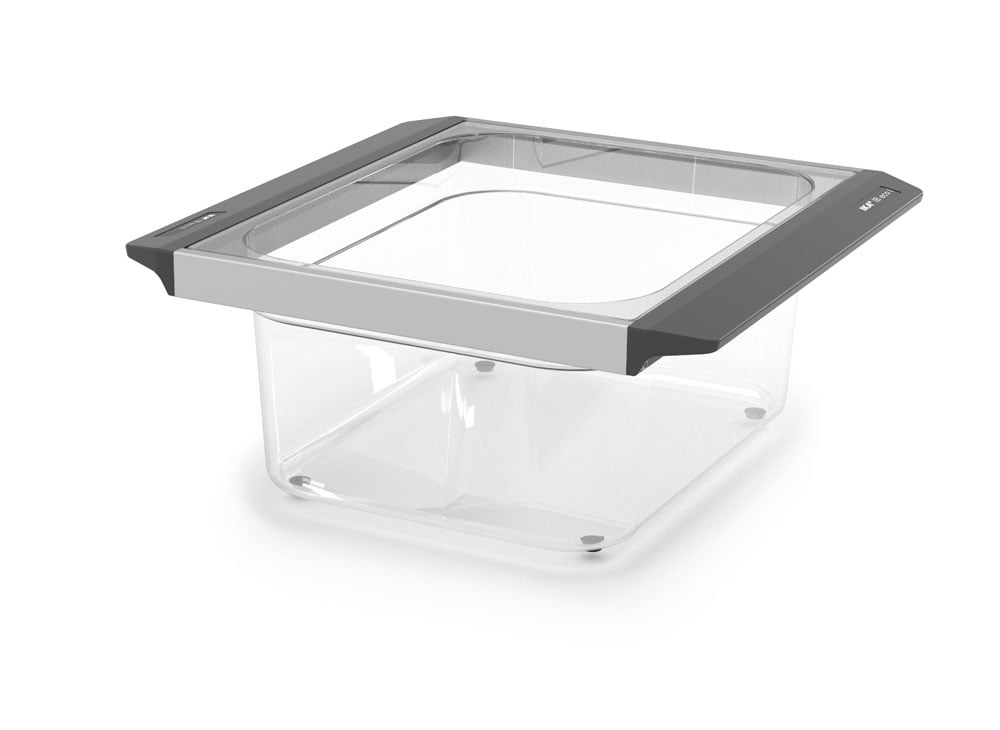

IB 8 eco plastic bath (size S)

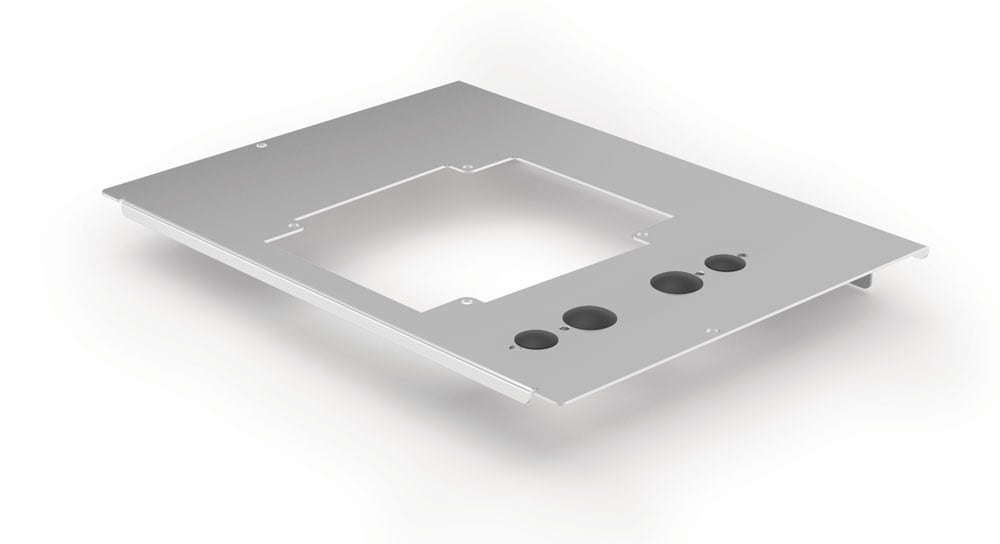

BS.ICC small bridge
total: 320 x 335 x 349 mm
bath opening: 188 x 105 mm *
max
bath opening: 227 x 118 mm **
Immersion depth
85 mm–125 mm
*Dimensions to set plate at the bottom of bath
** Maximum bath opening dimensions at the upper edge of the bath
Max
temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
| Debiet (L/min) | 18 L/min | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperatuurbereik (°C) | (room T°+10°C) - 100 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Verwarmingsvermogen (W) | 2.000 W | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output [W] | 2000 |
| Working temperature [°C] | room temp. +10K @1000rpm - 150 |
| Operating temperature min. (with external cooling) [°C] | -20 |
| Temperature display | Ja |
| Temperature control | PT 100 |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | LED |
| Safety temperature display | LED |
| Temperature stability DIN 12876 [K] | ±0.02 |
| Display resolution [K] | 0.1 |
| Display for operation with ext. sensor | Ja |
| Set temperature resolution [K] | ±0.1 |
| Warning function optical | Ja |
| Warning function acoustic | Ja |
| Warning function excess temperature | Ja |
| Warning function insufficient temperature | Nee |
| Adjustable safety circuit [°C] | 0 - 160 |
| Sub-level protection | Ja |
| Over-level protection | Ja |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | Ja |
| Pump pressure max. (0 liters discharge flow) [bar] | 0.3 |
| Pressure pump (suction side) (0 liter flow) [bar] | 0.2 |
| Flow rate max. (0 bar back pressure) [l/min] | 18 |
| Bath depth min. [mm] | 150 |
| Calibration option | Ja |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time [%] | 100 |
| Dimensions (W x H x D) [mm] | 145 x 340 x 200 |
| Weight [kg] | 10.5 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | Ja |
| USB interface | Ja |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 2100 |
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories
Package includes
ICC basic compact immersion circulator
IB 8 eco plastic bath (size S)
BS.ICC small bridge
total: 320 x 335 x 349 mm
bath opening: 188 x 105 mm *
max
bath opening: 227 x 118 mm **
Immersion depth
85 mm–125 mm
*Dimensions to set plate at the bottom of bath
** Maximum bath opening dimensions at the upper edge of the bath
Max
temperature in the plastic bath (“eco” series): 100°C (water only)
Technical data relates to the temperature control instrument included in the package
