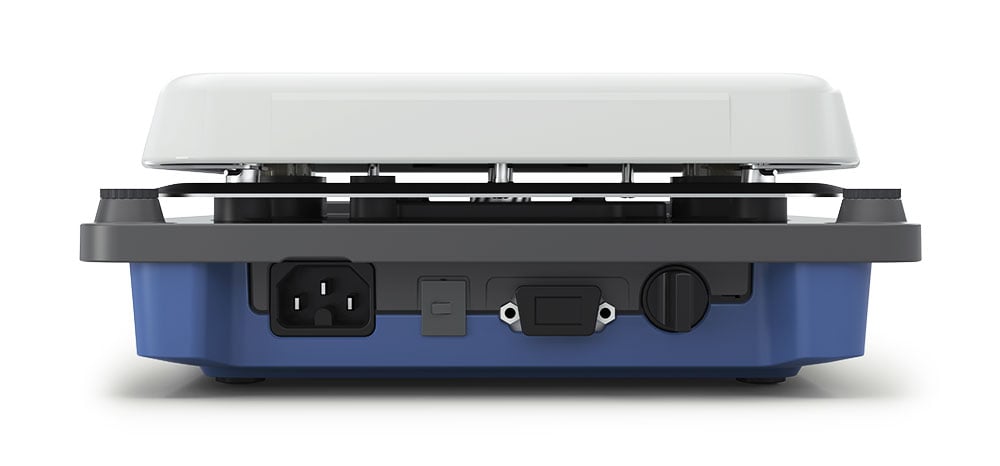

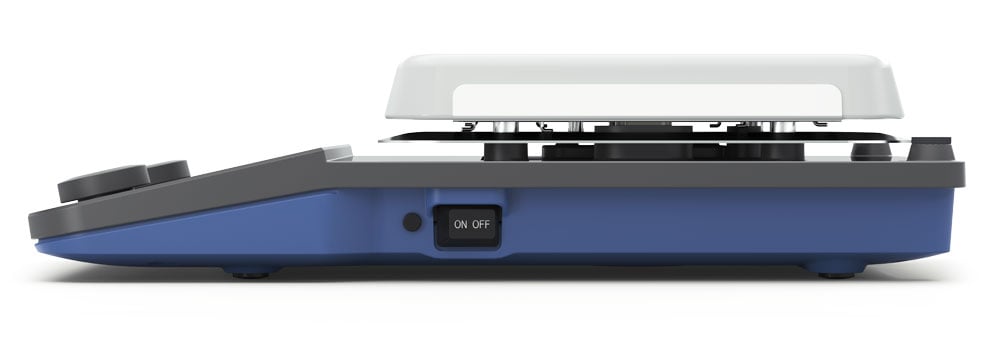

The IKA C-Mag HS 7 control has a square top made of ceramic
It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm
IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer
IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface
The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently
Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium
Function selectable, timeout time adjustable (Error 5)
PT1000 temperature sensor included
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) [l] | 20 |
Maximun load [kg] | 25 |
Motor rating output [W] | 9 |
Direction of rotation | right / left |
Speed display set-value | LCD |
Speed display actual-value | LCD |
Speed adjustment | Turning knob |
Speed range [rpm] | 50 - 1500 |
Setting accuracy speed [rpm] | 10 |
Stirring bar length [mm] | 30 - 80 |
Self-heating of the set-up plate by max. stirring (RT | 22°C/duration:1h) [K]: +1 |
Heat output [W] | 1000 |
Temperature display set-value | LCD |
Temperature display actual-value | LCD |
Temperature unit | °C |
Heating temperature range [°C] | room temp. - 500 |
Heat control | Turning knob |
Display resolution [K] | 1 |
Temperature setting range [°C] | 0 - 500 |
Temperature setting resolution of heating plate [K] | 5 |
Connection for ext. temperature sensor | PT1000, ETS-D5, ETS-D6 |
Temperature setting resolution of medium [K] | 1 |
Adjustable safety circuit [°C] | 100 - 650 |
Set-up plate material | ceramic |
Set-up plate dimensions [mm] | 180 x 180 |
Automatic reverse rotation | yes |
Intermittent mode | yes |
Viscosity trend measurement | yes |
Break detection stirring bar | no |
Timer | yes |
Timer display | LCD |
Time setting min. [s] | 1 |
Time setting max. [min] | 143940 |
pH measurement | no |
Graph function | no |
Programs | no |
Sensor in medium detection (Error 5) | yes |
Weighing function | no |
Temperature measure range PT1000 [°C] | -10 - 350 |
Speed deviation (no load,nominal voltage, at 1500rpm + 25 °C) [%] | ±2 |
Heating rate (1l H2O in H1500) [K/min] | 5 |
Heat control accuracy of heating plate (at 100°C) [K] | ±5 |
Heat control accuracy with ext. PT1000 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K] | ±0.5 |
Heat control accuracy with ETS-D5 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K] | ±0.5 |
Heat control accuracy with ETS-D6 (500ml H2O in 600ml beaker,40mm stirring bar,600rpm,50°C) [K] | ±0.2 |
Dimensions (W x H x D) [mm] | 220 x 88 x 354 |
Weight [kg] | 4 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 21 |
RS 232 interface | yes |
USB interface | yes |
Analog output | no |
Voltage [V] | 220 - 230 |
Frequency [Hz] | 50/60 |
Power input [W] | 1020 |
Power input standby [W] | 2 |
The IKA C-Mag HS 7 control has a square top made of ceramic
It stirs volumes of up to 20l (H2o) and runs at speeds ranging from 50-1500rpm
IKA’s stands strongly by its product and technology and is offering a lifetime warranty for this product – scientists can focus on their experiments using a reliable hotplate stirrer
IKA not only focuses on hardened glass because of visibility, chemical resistance and safety, it also optically changes the game of a magnetic stirrer with a glass surface
The C-Mag HS 7 control improves over time with regular firmware updates – control of kinetics and sensitive reactions are supported by the integrated timer and counter function – the IKA SmartTemp® function protects user intelligently
Automatic switch-off of the heating function if the connected external temperature sensor is not immersed in the medium
Function selectable, timeout time adjustable (Error 5)
PT1000 temperature sensor included
