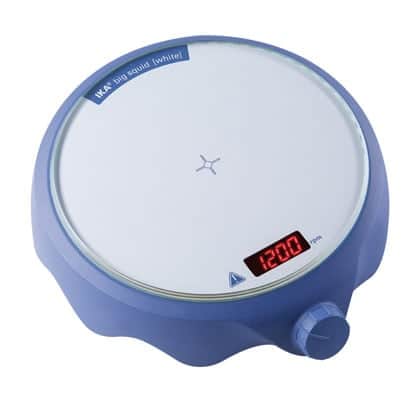

Magnetic stirrer with glass surface and different motives.
Digital speed display (LED)
Electronically controlled motor for more capacity
Higher speed range from 0 - 2.500 rpm
Max
stirring quantity 1, 5 l
Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
Recyclable materials
Afmetingen plaat | Ø 160 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Diameter plaat (Ø) | 160 mm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 1,5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 0 - 2.500 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Verwarming (ja/nee) | Nee | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Number of stirring positions | 1 |
Stirring quantity max. per stirring position (H2O) [l] | 1.5 |
Motor rating output [W] | 2 |
Direction of rotation | right |
Speed display set-value | LED |
Speed adjustment | Turning kNeeb |
Speed range [rpm] | 0 - 2500 |
Setting accuracy speed [rpm] | 50 |
Stirring bar length max. [mm] | 30 |
Set-up plate material | glass |
Set-up plate dimensions [mm] | Ø 160 |
Automatic reverse rotation | Nee |
Intermittent mode | Nee |
Viscosity trend measurement | Nee |
Break detection stirring bar | Nee |
Timer | Nee |
pH measurement | Nee |
Graph function | Nee |
Programs | Nee |
Sensor in medium detection (Error 5) | Nee |
Weighing function | Nee |
Set-up plate illuminated | Nee |
Dimensions (W x H x D) [mm] | 185 x 45 x 205 |
Weight [kg] | 0.889 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 54 |
RS 232 interface | Nee |
USB interface | Nee |
Analog output | Nee |
Voltage [V] | 100 - 240 |
Frequency [Hz] | 50/60 |
Power input [W] | 4 |
DC Voltage [V=] | 12 |
Current consumption [mA] | 300 |
Magnetic stirrer with glass surface and different motives.
Digital speed display (LED)
Electronically controlled motor for more capacity
Higher speed range from 0 - 2.500 rpm
Max
stirring quantity 1, 5 l
Outstanding chemical resistance due to glass top and synthetic bottom made of TPC-ET
Recyclable materials
