IKA Temperatuur en pH-sensor PT Wireless

Merk: IKA

Referentie: 0025008369

Pt.Wireless – Precise temperature and pH measurement

Pt.Wireless is the consistent solution for digital, wireless temperature and pH measurement in the laboratory

As an intelligent, wireless sensor, it reliably transmits measured values to compatible IKA devices and software solutions – ensuring maximum flexibility and seamless integration into modern laboratory workflows

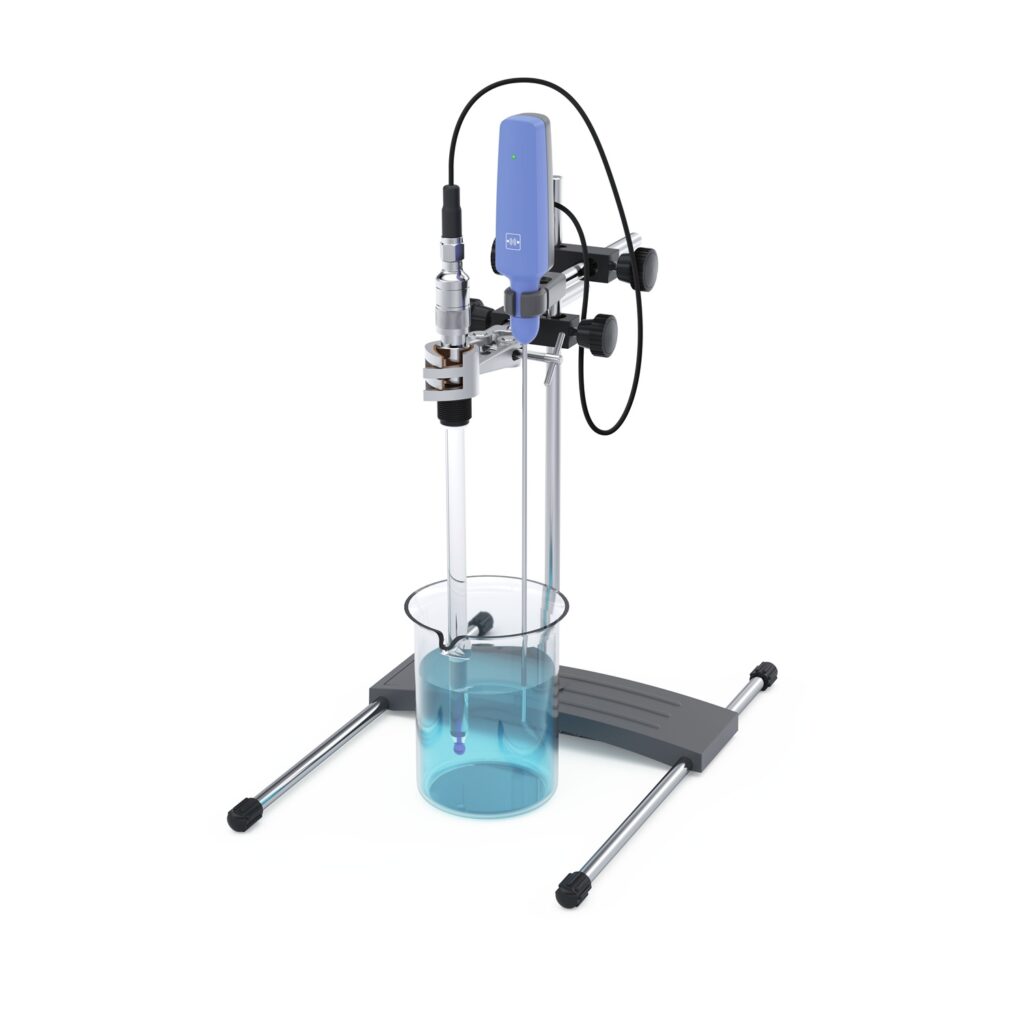

Pt.Wireless measures temperature and pH values and transmits them wirelessly or, alternatively, via USB‑C to IKA magnetic stirrers (latest‑generation RCT basic and RET basic), EUROSTAR control (latest generation), the laboratory software LWS, and directly to the IKA App

Using the app, measured values can be displayed in real time – without the need for an additional display or operating element on the sensor itself

Both temperature and pH values can be calibrated directly via the app, ensuring simple, precise and reproducible adjustment to laboratory requirements

pH measurement is performed by connecting a pH electrode directly to the integrated BNC interface, eliminating the need for an external pH meter

With a battery life of up to 150 hours, a robust design with IP54 protection class, and exchangeable temperature probes, Pt.Wireless is designed for continuous laboratory operation

Compatibility with LWS additionally enables centralized data acquisition and supports transparent, reproducible processes

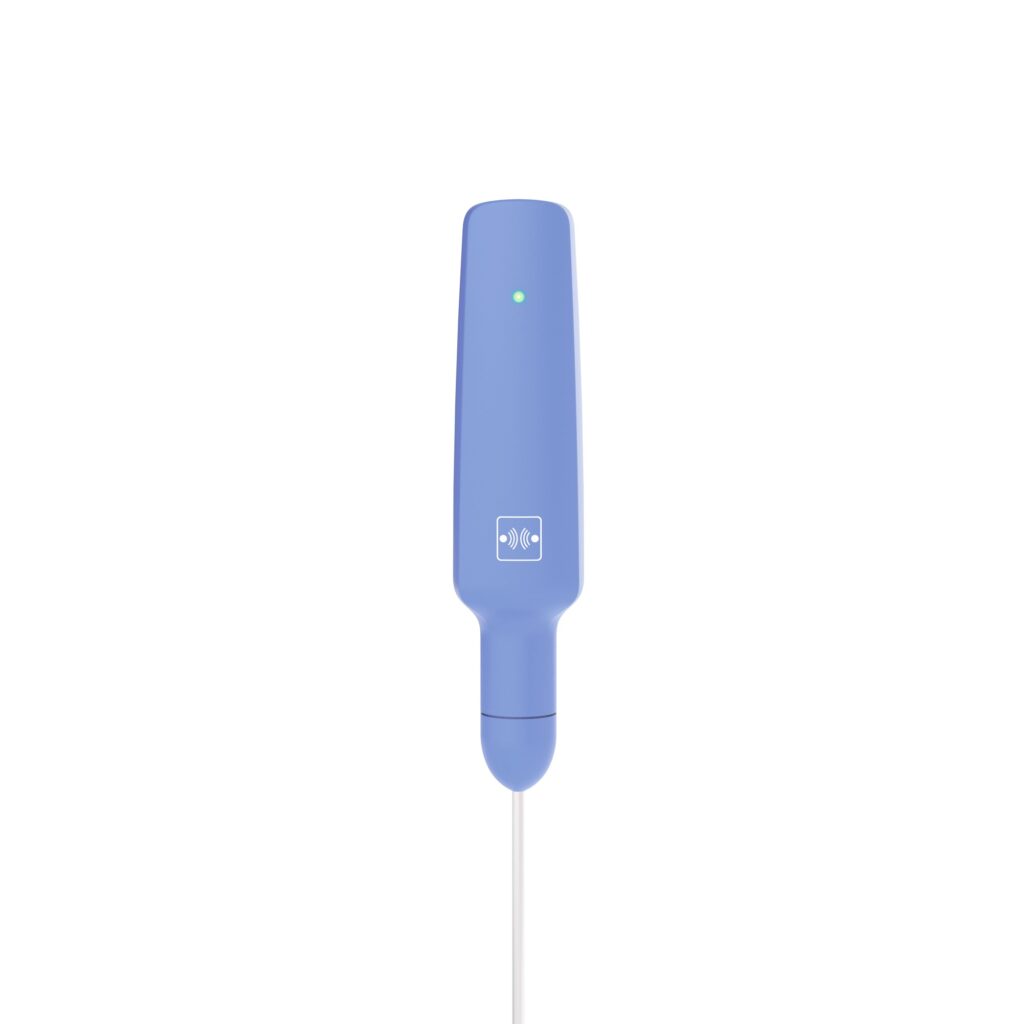

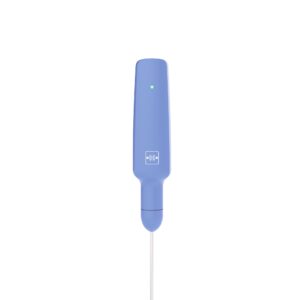

To further increase operational safety, Pt.Wireless features a multi‑level battery status warning via the integrated LED indicator

When the remaining operating time falls below 70 hours, the LED provides a visual indication that safe operation over a weekend can no longer be ensured

At a critical remaining operating time of approximately 20 hours (below the level for safe overnight operation), the LED changes to a slowly blinking yellow warning signal, clearly indicating a low battery status

Compatible with devices from the new series: RET basic, Eurostar control, RCT basic (wired, or wireless with USB WD)

Meer lezen

€198,00 Excl. BTW

€239,58 Incl. BTW

Levertijd op aanvraag

Gratis levering v.a. € 400 in webshop

Voordelige prijzen

Vijfsterrenservice voor & na verkoop

Levering 1 à 3 dagen voor stockartikelen

Temperature measuring range min. (with H62 sensor) [°C]	-20
Temperature measuring range max. (with H62 sensor) [°C]	400
Temperature measurement resolution [K]	0.1
Accuracy of temperature measurement [K]	±0.2 + tolerance PT1000 (DIN IEC 751 Class A)
pH measurement [-]	yes / BNC socket female
pH measuring range min. [pH]	0
pH measuring range max. [pH]	14
Accuracy of pH measurement [pH]	±0.1
pH measurement resolution [pH]	0.01
Battery capacity [mAh]	700
Immersion depth min. [mm]	20
Touch function [-]	yes
Warning function acoustic [-]	yes
Rechargeable battery [-]	yes
Perm. duration of operation (battery) [-]	max. 150 h
Battery charging time [-]	50% at 60 Minutes; 75% at 90 Minutes
Battery charging current max. [mA]	500
Changeable temperature sensor [-]	H62.51
Thermometer connector type (to main device) [-]	no
Status LED [-]	yes
Sensor type [-]	PT1000 (DIN IEC 751 Class A)
Communication distance (depend onbuilding) max. [m]	15
Width [mm]	30
Depth [mm]	380
Height [mm]	38
Weight [kg]	0.09
Permissible ambient temperature min. [°C]	5
Permissible ambient temperature max. [°C]	40
Permissible relative humidity [%]	80
Protection class according to DIN EN 60529 [-]	IP 54
USB interface [-]	USB-C
WPAN interface [-]	yes
DC Voltage [V=]	5
