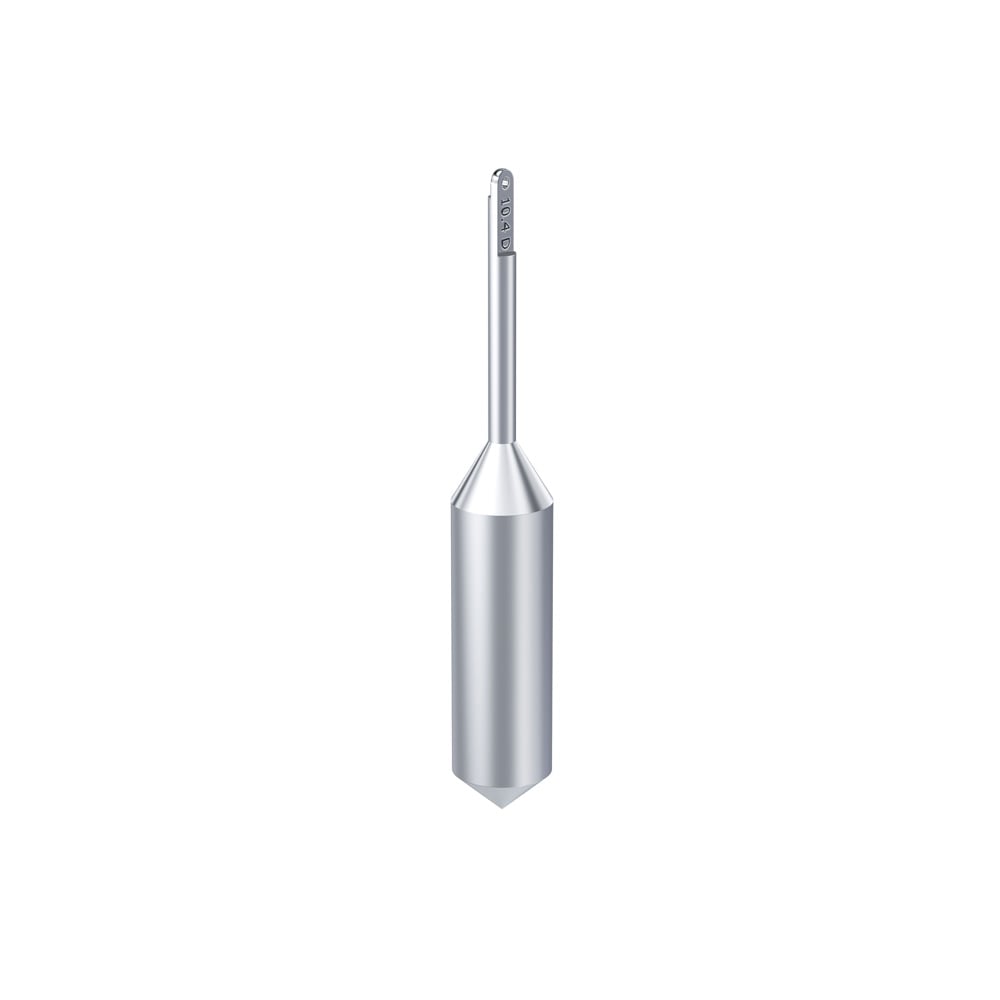

IKA T-SP-2
Single T-SP-2 spindle
The spindle can only be used in combination with the motorized stand HELISTAND as well as the respective nut and coupling
The complete T-SP-SET with nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.
| Spindle geometry | T-bar |
| Connection | Thread M2.5 LH |
| Quick plug connector | no |
| Hook connector | no |
| Diameter [mm] | 36.4 |
| Spindle length [mm] | 114.3 |
| Mounting Bracket | yes |
| Sample container | : 600mL beaker low |
| Viscosity Accuracy (FSR) [%] | 1 |
| Viscosity Repeatibility (FSR) [%] | 0.2 |
| Min. FSR match ROTAVISC lo-vi [mPa.s] | 187.5 |
| Max. FSR match ROTAVISC lo-vi [mPa.s] | 37492 |
| Min. FSR match ROTAVISC me-vi [mPa.s] | 2000 |
| Max. FSR match ROTAVISC me-vi [mPa.s] | 400000 |
| Min. FSR match ROTAVISC hi-vi I [mPa.s] | 4000 |
| Max. FSR match ROTAVISC hi-vi I [mPa.s] | 800000 |
| Min. FSR match ROTAVISC hi-vi II [mPa.s] | 16000 |
| Max. FSR match ROTAVISC hi-vi II [mPa.s] | 3200000 |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) [mm] | 38 x 116 x 38 |
| Weight [kg] | 0.002 |
| Permissible ambient temperature [°C] | 5 - 40 |
Single T-SP-2 spindle
The spindle can only be used in combination with the motorized stand HELISTAND as well as the respective nut and coupling
The complete T-SP-SET with nut and coupling is included with the HELISTAND Set and all ROTAVISC HELI Packages
T-spindles used in combination with the motorized stand HELISTAND are particularly suitable for the measurement of non-flowing samples, such as creams, pastes or gelatin.
