IKA SP set-1
The standard spindle set SP set-1 includes four spindles (SP1, SP2, SP3, SP4)
It is particularly suitable for viscosity determination in combination with the rotary viscometers ROTAVISC lo-vi Complete or ROTAVISC lo-vi Advanced
| Spindle geometry | Cylinder |
| Connection | Thread M2.5 LH |
| Quick plug connector | no |
| Hook connector | no |
| Spindle length [mm] | 115 |
| Sample volume [ml] | 500 |
| Flow Jacket | no |
| Mounting Bracket | no |

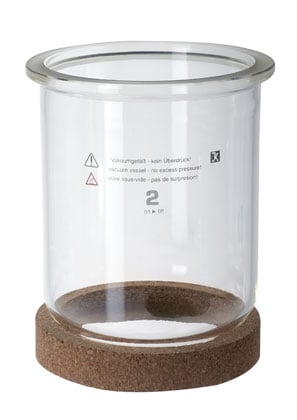

| Sample container | : 600mL beaker low |
| Working temperature max. [°C] | 300 |
| Viscosity Accuracy (FSR) [%] | 1 |
| Viscosity Repeatibility (FSR) [%] | 0.2 |
| Min. FSR match ROTAVISC lo-vi [mPa.s] | 15 |
| Max. FSR match ROTAVISC lo-vi [mPa.s] | 6000000 |
| Min. FSR match ROTAVISC me-vi [mPa.s] | 100 |
| Max. FSR match ROTAVISC me-vi [mPa.s] | 64000000 |
| Min. FSR match ROTAVISC hi-vi I [mPa.s] | 200 |
| Max. FSR match ROTAVISC hi-vi I [mPa.s] | 128000000 |
| Min. FSR match ROTAVISC hi-vi II [mPa.s] | 800 |
| Max. FSR match ROTAVISC hi-vi II [mPa.s] | 512000000 |
| Material in contact with medium | stainless steel 1.4404 |
| Dimensions (W x H x D) [mm] | 160 x 82 x 270 |
| Weight [kg] | 0.449 |
| Permissible ambient temperature [°C] | 5 - 40 |
The standard spindle set SP set-1 includes four spindles (SP1, SP2, SP3, SP4)
It is particularly suitable for viscosity determination in combination with the rotary viscometers ROTAVISC lo-vi Complete or ROTAVISC lo-vi Advanced
