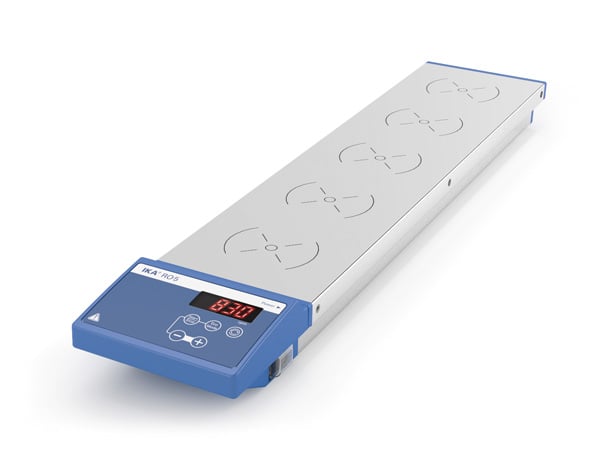

Ika RO 5
5-position digital magnetic stirrer without heating, designed for synchronous stirring
The magnetic coil technology provides noiseless and consistent stirring on all positions
Speed remains constant, even when load changes
The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids
Additionally, a removable transparent anti-slip mat is included.
Adjustable reverse operation
Wear free magnetic coils
Error code display
Easy operation with touch keypad
Suitable for continuous operation
Speed range: 0 - 1200 rpm
| Afmetingen plaat | 120 x 470 mm | |||||||||||||||||||||||||||||||||||||
| Max. volume vloeistof | 0,4 | |||||||||||||||||||||||||||||||||||||
| Rotatiesnelheid (tpm) | 0 - 1.200 rpm | |||||||||||||||||||||||||||||||||||||
| Verwarming (ja/nee) | Nee | |||||||||||||||||||||||||||||||||||||
| Technische data |
| Number of stirring positions | 5 |
| Stirring position distance [mm] | 90 |
| Speed deviation of individual stirring positions [%] | 0 |
| Stirring quantity max. per stirring position (H2O) [l] | 0.4 |
| Speed adjustment | 10 RPM Steps |
| Speed range [rpm] | 0 - 1200 |
| Stirring bar length [mm] | 25 - 30 |
| Set-up plate material | stainless steel 1.4301 |
| Set-up plate dimensions [mm] | 120 x 470 |
| Dimensions (W x H x D) [mm] | 120 x 60 x 570 |
| Weight [kg] | 3.66 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 40 |
| Voltage [V] | 100 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 13 |
| DC Voltage [V=] | 24 |
| Current consumption [mA] | 500 |
5-position digital magnetic stirrer without heating, designed for synchronous stirring
The magnetic coil technology provides noiseless and consistent stirring on all positions
Speed remains constant, even when load changes
The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids
Additionally, a removable transparent anti-slip mat is included.
Adjustable reverse operation
Wear free magnetic coils
Error code display
Easy operation with touch keypad
Suitable for continuous operation
Speed range: 0 - 1200 rpm
