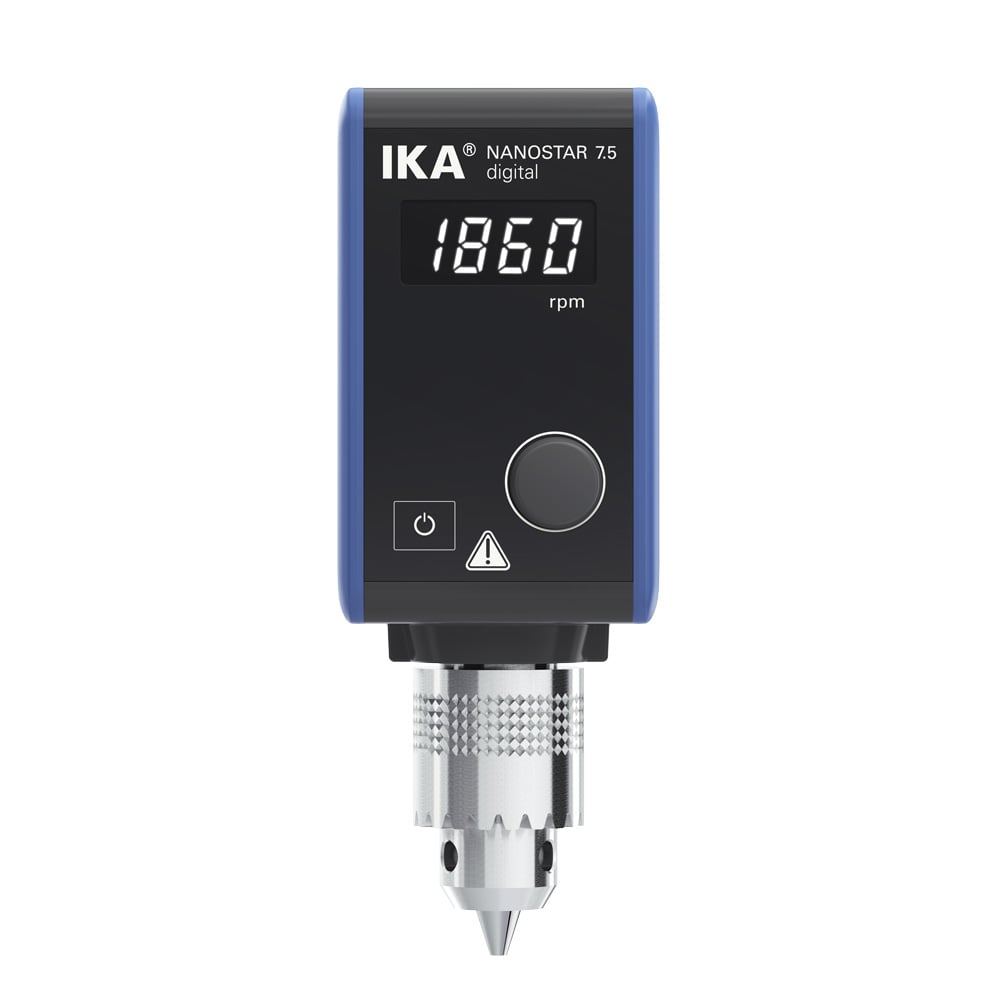

The overhead stirrer NANOSTAR 7.5 digital is 30 % smaller than the MICROSTAR 7.5 digital and therefore even more space-saving
However, its performance remains the same
NANOSTAR 7.5 digital convinces with perfect basic functionalities, its compact design and is with just 0, 8 kg easy to handle
Constant torque
NANOSTAR 7.5 digital guarantees a constant torque over the entire rpm range from 50 - 2.000 rpm
Ease of operation
Operation takes place using a stable rotary knob
The display clearly shows the rotational speed
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface
Max. koppel (Ncm) | 7,5 Ncm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. viscositeit (mPas) | 4.000 mPas | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. volume vloeistof | 5 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Rotatiesnelheid (tpm) | 0 - 2.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Stirring quantity max. per stirring position (H2O) [l] | 5 |
Motor rating input [W] | 32 |
Motor rating output [W] | 22 |
Motor principle | Brushless DC |
Speed display | LED |
Speed range [rpm] | 0/50 - 2000 |
Reversible direction of rotation | Nee |
Intermittent operation | Nee |
Viscosity max. [mPas] | 4000 |
Output max. at stirring shaft [W] | 15.7 |
Permissible ON time [%] | 100 |
Torque max. at stirring shaft [Ncm] | 7.5 |
Speed adjustment | Turning kNeeb |
Setting accuracy speed [rpm] | ±1 |
Deviation of speed measurement n > 300rpm [%] | ±1 |
Deviation of speed measurement n < 300rpm [rpm] | ±3 |
Stirring element fastening | chuck |
Temperature display | Nee |
Chuck range diameter [mm] | 0.5 - 8.2 |
Hollow shaft, inner diameter [mm] | 8.5 |
Hollow shaft (push-through - when stopped) | Ja |
Fastening on stand | extension arm |
Extension arm diameter [mm] | 13 |
Extension arm length [mm] | 160 |
Torque display | Nee |
Nominal torque [Nm] | 0.075 |
Timer | Nee |
Timer display | Neene |
Housing material | alu-cast coating / thermoplastic polymer |
Clean room qualified | Nee |
Explosion proofed | Nee |
Dimensions (W x H x D) [mm] | 53 x 147 x 130 |
Weight [kg] | 0.8 |
Permissible ambient temperature [°C] | 5 - 40 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 54 |
RS 232 interface | Nee |
USB interface | Ja |
Analog output | Nee |
Voltage [V] | 100 - 240 |
Frequency [Hz] | 50/60 |
Power input [W] | 32 |
Power input standby [W] | 0.3 |
DC Voltage [V=] | 24 |
Current consumption [mA] | 1300 |
The overhead stirrer NANOSTAR 7.5 digital is 30 % smaller than the MICROSTAR 7.5 digital and therefore even more space-saving
However, its performance remains the same
NANOSTAR 7.5 digital convinces with perfect basic functionalities, its compact design and is with just 0, 8 kg easy to handle
Constant torque
NANOSTAR 7.5 digital guarantees a constant torque over the entire rpm range from 50 - 2.000 rpm
Ease of operation
Operation takes place using a stable rotary knob
The display clearly shows the rotational speed
Rapid updates
Regular software updates can be undertaken rapidly and simply via the USB interface
