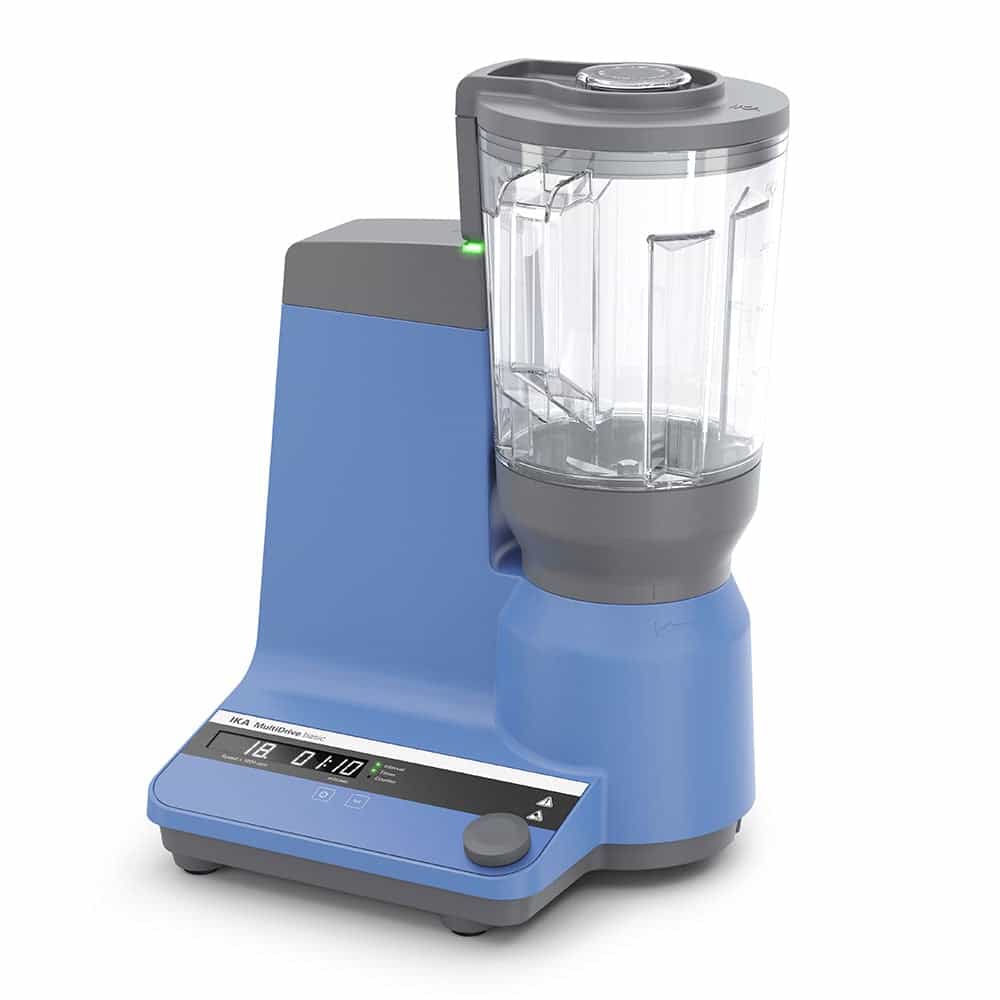

Ika MultiDrive basic
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery)
With the MultiDrive basic it is possible to mix or grind
There is a USB interface available for easy actuation and documentation respectively
In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from 3000 rpm to 20 000 rpm,
and a 1000 Watt output
Interval operation
The option of interval programming is simple to activate at the
press of a button
Interval operation is an asset during the coarse
crushing of hard samples or for extra thorough blending
Integrated cooling
A cooling system is integrated in the milling cup, which allows
indirect heat dissipation
Thus, coolant and sample remain separate
Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task
Vessels don't belong to the scope of delivery
| Bruikbaar volume (ml) | Afhankelijk van maalbeker | |||||||||||||||||||||||||||||||||||||||||||||
| Maalmolen of toebehoren (Tube, kogels, schroeven) | Maalmolen | |||||||||||||||||||||||||||||||||||||||||||||
| Max. snelheid | 20.000 rpm | |||||||||||||||||||||||||||||||||||||||||||||
| Soort maalmolen (snijden, schokken, kogels) | snijden/schokken/blenden/dispergeren | |||||||||||||||||||||||||||||||||||||||||||||
| Technische data |
| Process type | batch |
| Operating principle | cutting/impact/blending/dispersing |
| Motor rating input [W] | 1000 |
| Motor rating output [W] | 800 |
| Speed range [rpm] | 3000 - 20000 |
| Speed deviation [%] | ±5 |
| Power-ON time [min] | 5 |
| Power-OFF time [min] | 10 |
| Motor principle | Brushless DC |
| Display | 7 segment LED |
| Vessels detection | Ja |
| Dimensions (W x H x D) [mm] | 300 x 350 x 250 |
| Weight [kg] | 8.5 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 31 |
| RS 232 interface | Nee |
| USB interface | Ja |
| Bluetooth interface | Nee |
| Analog output | Nee |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1000 |
Regardless of whether samples are hard, soft or fibrous – the IKA MultiDrive crusher can perform a wide range of crushing tasks involving coarse and fine crushing, thanks to the variety of vessels available (vessels not included in delivery)
With the MultiDrive basic it is possible to mix or grind
There is a USB interface available for easy actuation and documentation respectively
In combination with the milling chamber MI 250 MultiDrive basic replaces your M 20 mill
High performance
Excellent crushing performance is guaranteed by a combination of
variable rotational speeds, ranging from 3000 rpm to 20 000 rpm,
and a 1000 Watt output
Interval operation
The option of interval programming is simple to activate at the
press of a button
Interval operation is an asset during the coarse
crushing of hard samples or for extra thorough blending
Integrated cooling
A cooling system is integrated in the milling cup, which allows
indirect heat dissipation
Thus, coolant and sample remain separate
Variety of vessels (accessory)
MultiDrive provides the right vessel for each grinding task
Vessels don't belong to the scope of delivery
