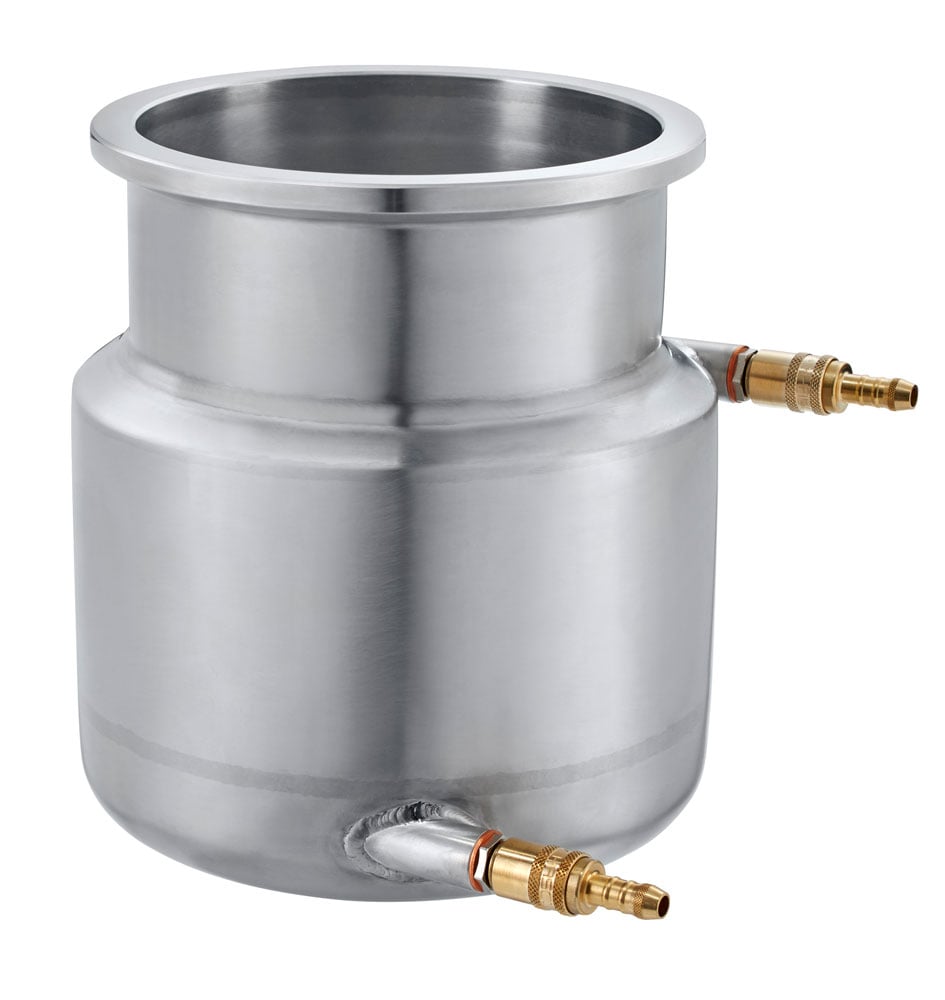

IKA LR 2000.3 Reactor vessel
Double-walled reactor vessel including accessories for the laboratory reactors LR-2.ST
Volume: 2.0 l
Material in contact with medium: stainless steel 1.4571
Including quick connection adapters with DN 8 Olive for connection of temperature hoses
Scope of delivery:
Stainless steel reactor incl
quick connection adapters with DN 8 olive
| Material in contact with medium | AISI 316L / 1.4571 |
| Volume [l] | 2 |
| Vessel inner diameter [mm] | 153 |
| Vessel outer diameter [mm] | 194 |
| Height (room dimension) [mm] | 230 |
| Width (room dimension) [mm] | 194 |
| Depth (room dimension) [mm] | 225 |
| Flange dimension | DN150 |
| Bottom shape | Torispherical head |
| Heating blanket | yes |
| Tempering jacket inlet inner diameter [mm] | 10 |
| Vacuum application | yes |
| Tempering jacket oulet inner diameter [mm] | 10 |
| Weight [kg] | 3.3 |
Double-walled reactor vessel including accessories for the laboratory reactors LR-2.ST
Volume: 2.0 l
Material in contact with medium: stainless steel 1.4571
Including quick connection adapters with DN 8 Olive for connection of temperature hoses
Scope of delivery:
Stainless steel reactor incl
quick connection adapters with DN 8 olive
