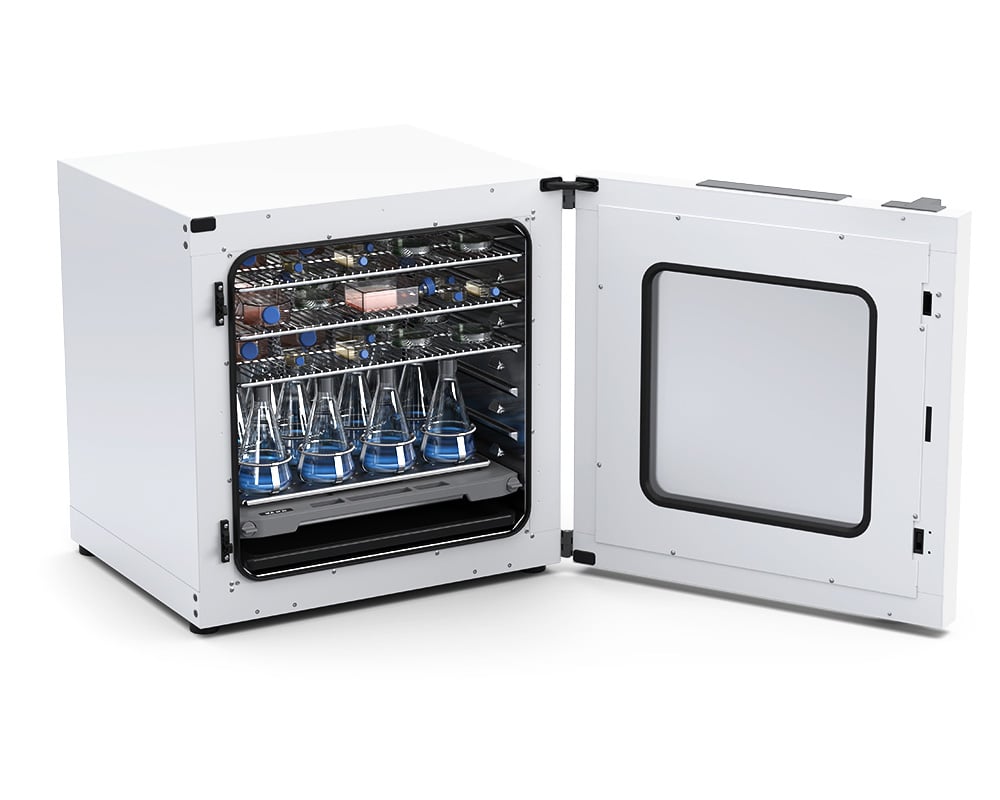

INC 125 FS digital is the first incubator shaker with a patented removable shaking platform
Without the shaking platform, the unit can be used like a normal incubator
The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaking platform)
Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubation shaker is the perfect so0lution for cell cultivation and other microbiological applications

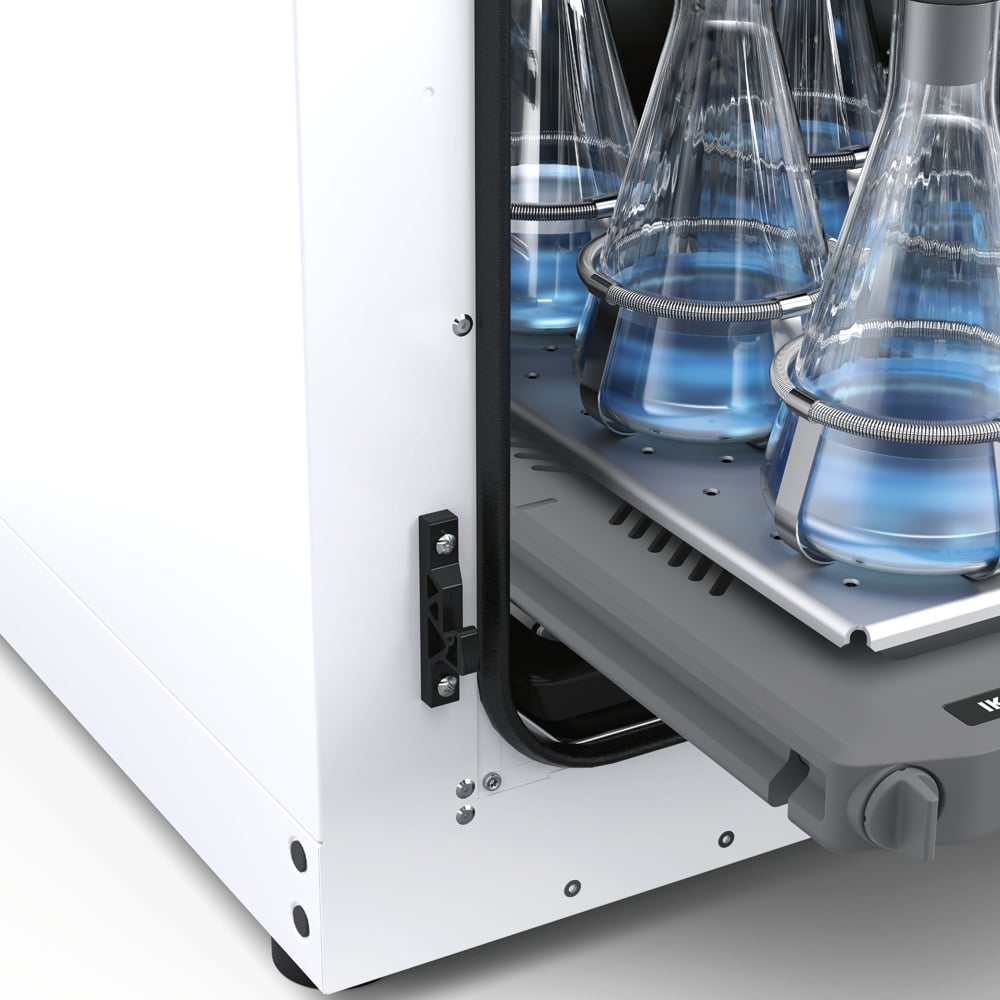

Patented removable shaker platform
• High shaking speed up to 300 rpm
• Shaking stroke: 20 mm (optional: 25 mm) for optimum oxygen input
• The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading
• The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
• Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
• When the door is opened, the shaking function stops automatically
• Shaking and temperature control function can be used independently of each other
Easy to clean
• Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304
• The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
• Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)
Optimal temperature control
• Wide temperature range: RT +8°C to 80 °C
• Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
• Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)
Simple and intuitive operation
• Very large LCD display for easy reading
• Large viewing window and switchable interior lighting for observation of samples
• Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions
Versatile accessories

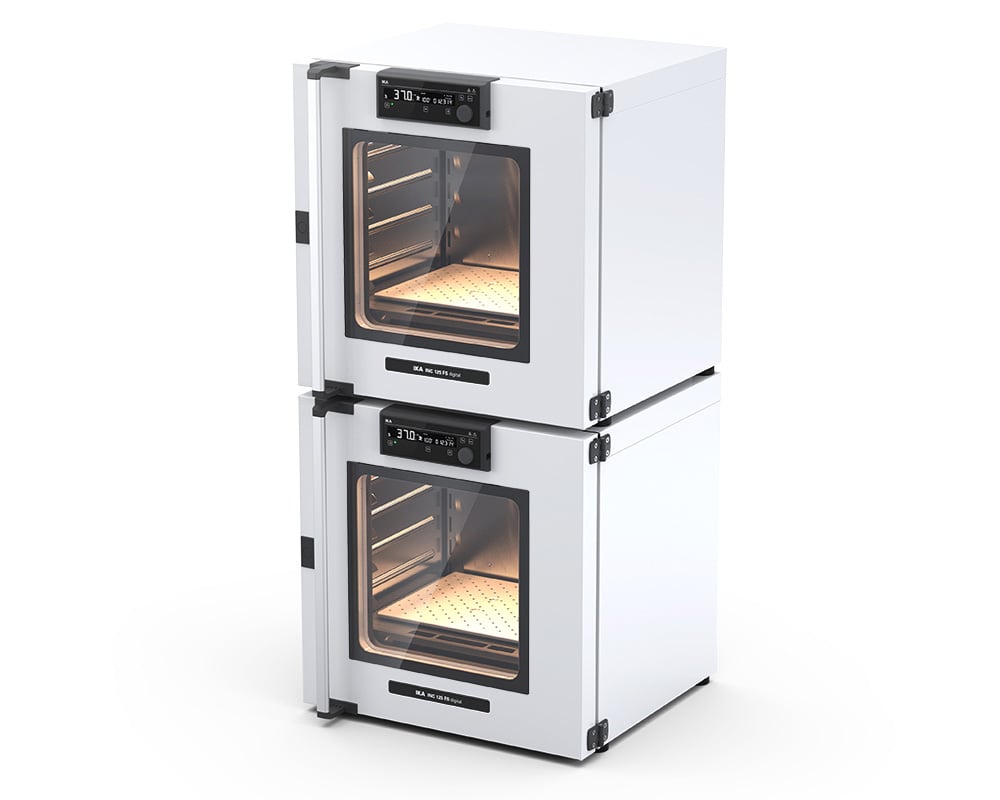

• Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)
• Different trays available
• Shaking platform available with 20 or 25 mm shaking stroke
Services
• Door hinge on the right, changeable on request
• Installation and Operation Qualification (IQ/OQ) available on request
Convectie | Mechanisch | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Programmering temperatuur | Nee | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Temperatuurbereik | 8 - 80 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Volume binnenkamer (L) | 125 L | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technische data |
Heat output [W] | 750 |
Working temperature [°C] | room temp. +8 - 80 |
Adjustment and display resolution [K] | 0.1 |
Temperature stability (37°C @22°C) [±°K] | 0.1 |
Temperature homogeneity (37°C @22°C) [±°K] | 0.2 |
Temperature heat up time (37°C @22°C) [min] | 12 |
Temperature door recovery (37°C @22°C) [min] | 2 |
Temperature display | Ja |
Display | LCD |
Timer display | LCD |
Time setting max. [d] | 100 |
Number of trays max. | 6 |
Load for one tray max. [kg] | 20 |
Operating area inner chamber [mm] | 550 x 550 x 415 |
Total volume inner chamber [l] | 125 |
Thermal safety devices according DIN 12880 | TB class 1 |
Door with window | Ja |
Temperature sensor control | PT 100 4 wire |
Cleaning thermal decontamination (100°C / 2h) | Ja |
Shaking stroke [mm] | 20 |
Speed range [rpm] | 10 - 300 |
Permissible shaking weight (incl. attachment) [kg] | 7.5 |
Set-up plate dimensions [mm] | 340 x 480 |
Power consumption at 37°C [W] | 95 |
Dimensions (W x H x D) [mm] | 700 x 720 x 635 |
Weight [kg] | 70 |
Permissible ambient temperature [°C] | 15 - 32 |
Permissible relative humidity [%] | 80 |
Protection class according to DIN EN 60529 | IP 20 |
RS 232 interface | Nee |
USB interface | Ja |
Bluetooth interface | Nee |
WiFi Interface | Nee |
Ethernet interface | Nee |
Analog output | Nee |
Analog input | Nee |
Voltage [V] | 200 - 240 |
Frequency [Hz] | 50/60 |
Power input [W] | 850 |
Power input max. [W] | 850 |
Power input standby [W] | 2 |
Fuse | 2x T5.0A 250V |
INC 125 FS digital is the first incubator shaker with a patented removable shaking platform
Without the shaking platform, the unit can be used like a normal incubator
The large inner chamber with a volume of 125 liters offers space for up to 6 grid shelves (without shaking platform)
Thanks to high temperature stability and a uniform shaking motion that improves oxygenation, the incubation shaker is the perfect so0lution for cell cultivation and other microbiological applications
Patented removable shaker platform
• High shaking speed up to 300 rpm
• Shaking stroke: 20 mm (optional: 25 mm) for optimum oxygen input
• The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading
• The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
• Automatic detection of the shaker platform allows the temperature to be automatically adjusted in decontamination mode (100 or 120°C)
• When the door is opened, the shaking function stops automatically
• Shaking and temperature control function can be used independently of each other
Easy to clean
• Simple cleaning of the interior thanks to rounded corners and flat surfaces made of corrosion-resistant material AISI 304
• The optional drip pan provides additional safety in case of liquid overflow or can be used as water reservoir to increase humidity in the chamber
• Decontamination mode for disinfection and reduction of cross-contamination (100/120°C)
Optimal temperature control
• Wide temperature range: RT +8°C to 80 °C
• Excellent temperature management and optimized energy consumption thanks to very good insulation of the inner chamber and triple-glazed door with window
• Internal air circulation can be influenced by electronically adjustable fan speed (0-100%)
Simple and intuitive operation
• Very large LCD display for easy reading
• Large viewing window and switchable interior lighting for observation of samples
• Counter, timer and timer auto (temperature-controlled) function to ensure reproducible test conditions
Versatile accessories
• Up to two devices (incubator shaker or incubator) can be stacked (with corresponding accessories)
• Different trays available
• Shaking platform available with 20 or 25 mm shaking stroke
Services
• Door hinge on the right, changeable on request
• Installation and Operation Qualification (IQ/OQ) available on request
