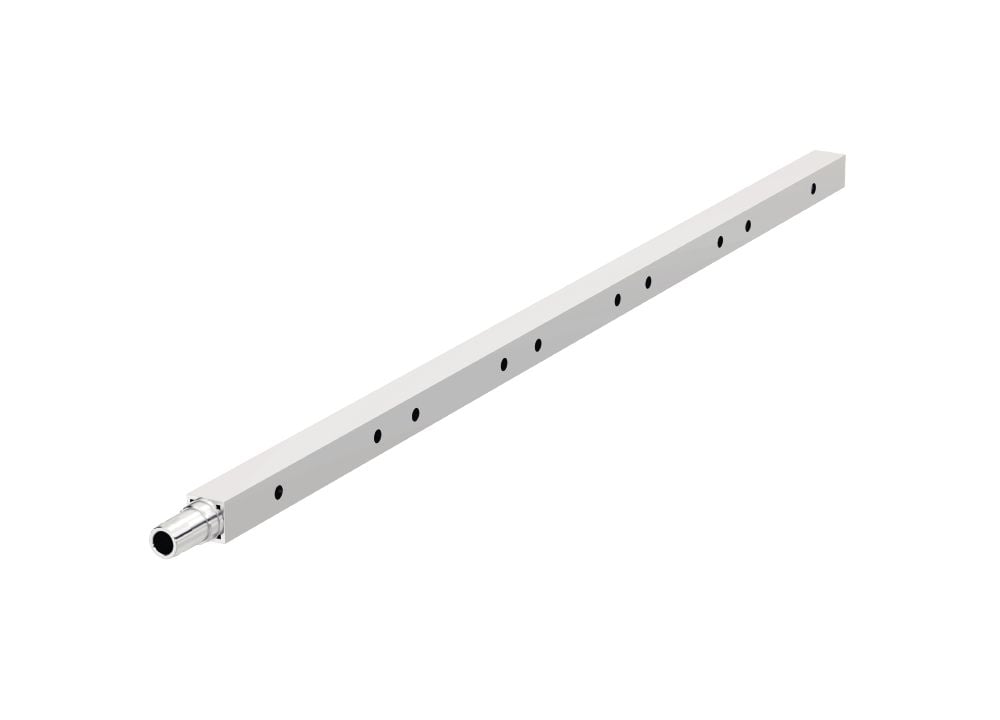

IKA Distribution pipe
€191,00
Toegevoegd aan je winkelmand!

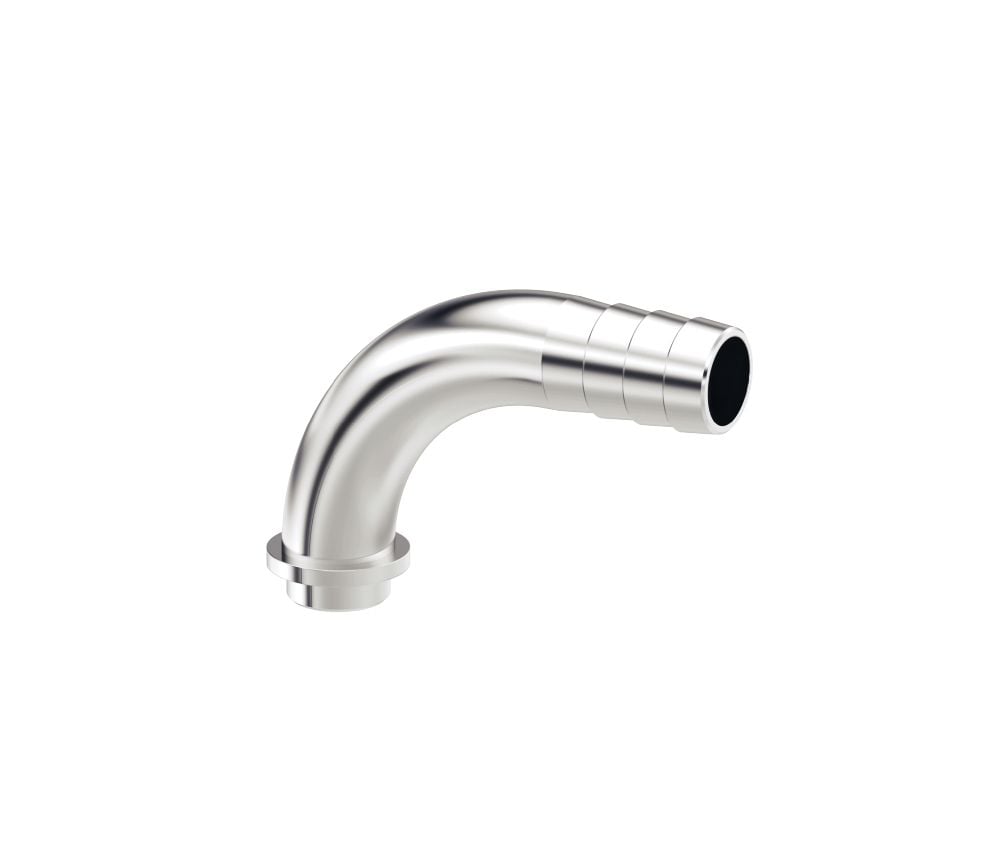

IKA elbow Olive 90° for pump
€72,50
Toegevoegd aan je winkelmand!
IKA ICC basic IB R RO 15 pro Circulatiebadverwarming
€5.973,00
Toegevoegd aan je winkelmand!
IKA ICC basic IB R RO 15 eco Circulatiebadverwarming
€5.021,00
Toegevoegd aan je winkelmand!
IKA ICC control IB R RO 15 pro Circulatiebadverwarming
€6.598,00
IKA ICC control IB R RO 15 eco Circulatiebadverwarming
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories
Circulating bath with 15 stirring postions for glas beakers up to 250 ml
Package includes: ICC control compact immersion circulator, IB R RO 15 eco plastic bath (size L), RO 15 magnetic stirrer, BL.ICC large bridge
Bath opening: 317 x 492 mm
Immersion Depth: 35 - 75 mm
Max. temperature in the plastic bath (“eco” series): 80 °C (water only)
Technical data relates to the temperature control instrument included in the package
| Appliance type | Compact immersion circulators |
| Class designation acc. DIN 12876 | III |
| Identification according to DIN 12876 | FL |
| Heat output [W] | 2000 |
| Working temperature [°C] | room temp. +10K @1000rpm - 150 |
| Operating temperature min. (with external cooling) [°C] | -20 |
| Temperature display | yes |
| Temperature control | PID |
| Working temperature sensor | PT 100 |
| Safety temperature sensor | PT1000 |
| Working temperature display | TFT |
| Safety temperature display | TFT |
| Temperature stability DIN 12876 [K] | ±0.01 |
| Connection for ext. temperature sensor | PT 100 |
| Display resolution [K] | 0.01 |
| Display for operation with ext. sensor | yes |
| Set temperature resolution [K] | ±0.1 |
| Warning function optical | yes |
| Warning function acoustic | yes |
| Warning function excess temperature | yes |
| Warning function insufficient temperature | no |
| Adjustable safety circuit [°C] | 0 - 160 |
| Sub-level protection | yes |
| Over-level protection | yes |
| Pump type | Pressure- / suction pump |
| Pump capacity adjustable | yes |
| Pump pressure max. (0 liters discharge flow) [bar] | 0.3 |
| Pressure pump (suction side) (0 liter flow) [bar] | 0.2 |
| Flow rate max. (0 bar back pressure) [l/min] | 18 |
| Bath depth min. [mm] | 150 |
| Calibration option | yes |
| Appliance fastener | clamp |
| Technical data complies with the standard | DIN 12876 |
| Permissible ON time [%] | 100 |
| Dimensions (W x H x D) [mm] | 145 x 340 x 200 |
| Weight [kg] | 22.29 |
| Permissible ambient temperature [°C] | 5 - 40 |
| Permissible relative humidity [%] | 80 |
| Protection class according to DIN EN 60529 | IP 21 |
| RS 232 interface | yes |
| USB interface | yes |
| Voltage [V] | 230 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 2100 |
IKA facilitates the configuration of your temperature control system by offering “ready for connection“ packages with all necessary accessories
Circulating bath with 15 stirring postions for glas beakers up to 250 ml
Package includes: ICC control compact immersion circulator, IB R RO 15 eco plastic bath (size L), RO 15 magnetic stirrer, BL.ICC large bridge
Bath opening: 317 x 492 mm
Immersion Depth: 35 - 75 mm
Max. temperature in the plastic bath (“eco” series): 80 °C (water only)
Technical data relates to the temperature control instrument included in the package
