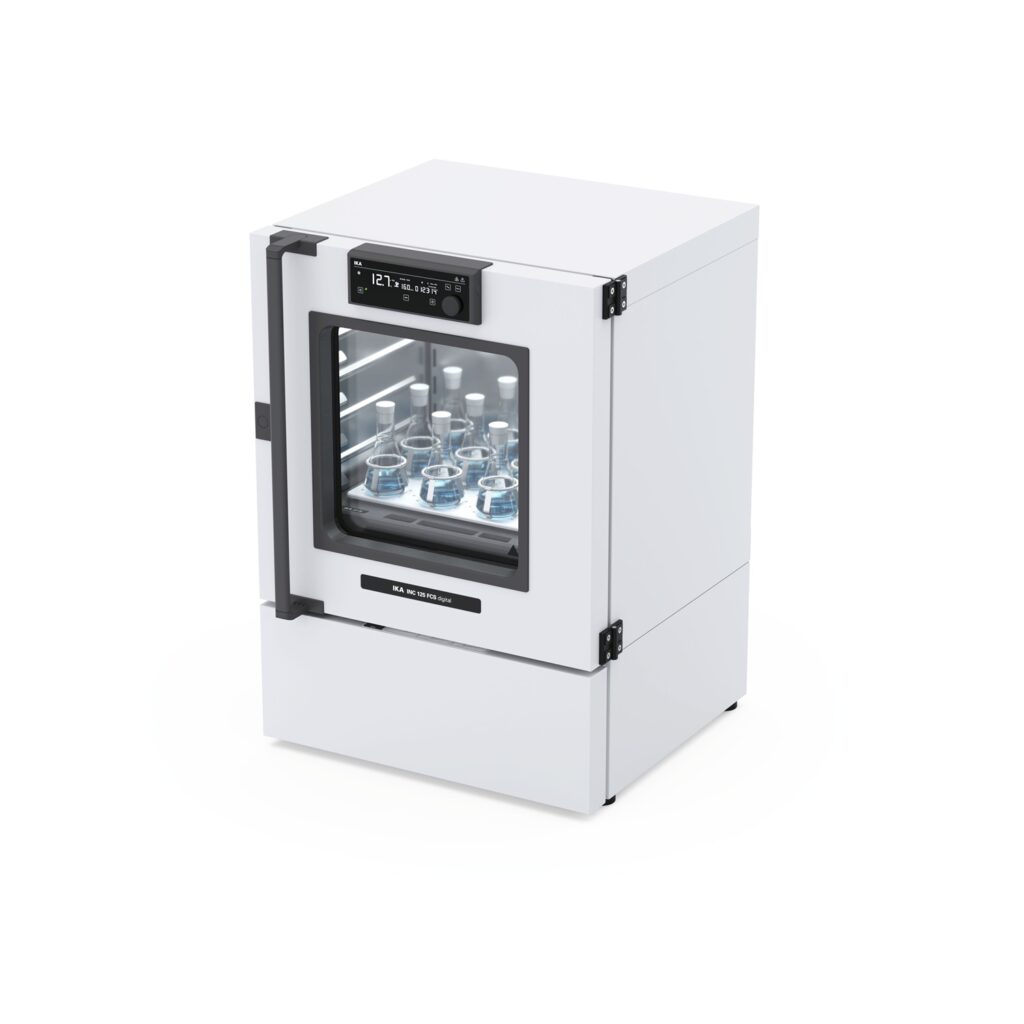

IKA Gekoelde Schudincubator INC 125 FCS digital SP25
The INC 125 FCS digital cooling and shaking incubator impresses with its precise temperature control, making it ideal for microbiological applications in the range of 5 to 80 °C
It is the first cooling and shaking incubator featuring a patented removable shaking platform
Without the platform, the appliance can be used like a conventional cooling incubator
Its high temperature stability and uniform shaking motion, which enhances oxygen transfer into the samples, make the INC 125 FCS digital the perfect solution for cell cultivation and other microbiological processes
The powerful compressor cooling technology uses the natural refrigerant R290, making the INC 125 FCS digital particularly energy-efficient and environmentally friendly
With an internal volume of 125 liters, it offers the largest capacity in its class and allows the simultaneous use of up to six shelves in its spacious chamber
Patented removable shaker platform
High shaking speed up to 300 rpm
Shaking stroke: 25 mm (optional: 20 mm) for optimum oxygen input
The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading
The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
When the door is opened, the shaking function stops automatically
Shaking and temperature control function can be used independently of each other
Hygienic Working Conditions: Decontamination mode (100 °C) for disinfection and prevention of cross-contamination, Easy-to-clean interior with rounded corners and flat surfaces made of corrosion-resistant AISI 304 stainless-steel Surfaces, Defrost function with continuous water drainage through the drain opening
Optimal Temperature Control: Wide temperature range: 5 °C to 80 °C, Excellent temperature constancy and uniformity: ± 0.3 K, Adjustable internal air circulation via electronically controlled fan speed (40–100%), Superior temperature management and optimized energy efficiency thanks to outstanding chamber insulation, Door with large viewing window and interior lighting for observing samples without temperature loss
Simple and Intuitive Operation: Large, user-friendly LCD display for clear and easy readability, Reproducible experimental conditions ensured through counter, timer, temperature-controlled timer, and operating modes A, B, and C
Versatile Accessories: Up to two IKA incubators can be safely stacked. An INC 125 FS (incubator shaker) or INC 125 F (incubator) can be placed on top of the INC 125 FCS (appropriate accessories required), Door lock (optional accessory), Shaking platform available with 20 mm or 25 mm shaking amplitude, Various shelf options available
Service Options: Door hinge on the right, can be changed on request, Installation and Operational Qualification (IQ/OQ) available upon request
| Cooling agent | R290 |
| Cooling agent quantity [g] | 55 |
| Cooling agent pressure max. [bar] | 21 |
| Heat output [W] | 750 |
| Working temperature min. [°C] | 5 |
| Working temperature max. [°C] | 80 |
| Adjustment and display resolution [K] | 0.1 |
| Temperature stability (37°C @22°C) [K] | ±0.2 |
| Temperature homogeneity (37°C @22°C) [K] | ±0.3 |
| Temperature heat up time (37°C @22°C) [min] | 8 |
| Temperature door recovery (37°C @22°C) [min] | 4 |
| Temperature display | yes |
| LCD Timer | yes |
| LCD Time setting max. [d] | 100 |
| Number of trays max. | 6 |
| Load for one tray max. [kg] | 20 |
| Total volume inner chamber [l] | 125 |
| Thermal safety devices according DIN 12880 | TB class 1 |
| Set-point limiter with safety shutdown | yes |
| Door with window | yes |
| Temperature sensor control | PT 100 4 wire |
| Defrost function | yes |
| Cleaning thermal decontamination (100°C) | yes |
| Shaking stroke [mm] | 20 |
| Speed min. [rpm] | 10 |
| Speed max. [rpm] | 300 |
| Speed deviation [rpm] | ±5 |
| Permissible shaking weight (incl. attachment) [kg] | 7.5 |
| Set-up plate dimensions [mm] | 340 x 480 |
| Power consumption at 37°C [Wh/h] | 79 |
| Drain tube inner diameter [mm] | 10 |
| Noise level [dB(A)] | 55 |
| Width [mm] | 700 |
| Depth [mm] | 635 |
| Height [mm] | 1000 |
| Weight [kg] | 95 |
| Permissible ambient temperature min. [°C] | 15 |
| Permissible ambient temperature max. [°C] | 32 |
| Permissible relative humidity [%] | 70 |
| Protection class according to DIN EN 60529 | IP 20 |
| USB interface | USB-C |
| WPAN interface | no |
| WiFi Interface | no |
| Ethernet interface | no |
| Analog output | no |
| Analog input | no |
| Voltage [V] | 220 - 240 |
| Frequency [Hz] | 50/60 |
| Power input [W] | 1000 |
| Power input max. [W] | 1000 |
| Fuse | 2x T6.3A 250V |
The INC 125 FCS digital cooling and shaking incubator impresses with its precise temperature control, making it ideal for microbiological applications in the range of 5 to 80 °C
It is the first cooling and shaking incubator featuring a patented removable shaking platform
Without the platform, the appliance can be used like a conventional cooling incubator
Its high temperature stability and uniform shaking motion, which enhances oxygen transfer into the samples, make the INC 125 FCS digital the perfect solution for cell cultivation and other microbiological processes
The powerful compressor cooling technology uses the natural refrigerant R290, making the INC 125 FCS digital particularly energy-efficient and environmentally friendly
With an internal volume of 125 liters, it offers the largest capacity in its class and allows the simultaneous use of up to six shelves in its spacious chamber
Patented removable shaker platform
High shaking speed up to 300 rpm
Shaking stroke: 25 mm (optional: 20 mm) for optimum oxygen input
The shaker platform can be pulled out halfway (with line indicator) for comfortable and tilt-proof loading
The threaded grid on the platform allows the mounting of fixing clips or STICKMAX adhesive mat for different vessels and sizes
When the door is opened, the shaking function stops automatically
Shaking and temperature control function can be used independently of each other
Hygienic Working Conditions: Decontamination mode (100 °C) for disinfection and prevention of cross-contamination, Easy-to-clean interior with rounded corners and flat surfaces made of corrosion-resistant AISI 304 stainless-steel Surfaces, Defrost function with continuous water drainage through the drain opening
Optimal Temperature Control: Wide temperature range: 5 °C to 80 °C, Excellent temperature constancy and uniformity: ± 0.3 K, Adjustable internal air circulation via electronically controlled fan speed (40–100%), Superior temperature management and optimized energy efficiency thanks to outstanding chamber insulation, Door with large viewing window and interior lighting for observing samples without temperature loss
Simple and Intuitive Operation: Large, user-friendly LCD display for clear and easy readability, Reproducible experimental conditions ensured through counter, timer, temperature-controlled timer, and operating modes A, B, and C
Versatile Accessories: Up to two IKA incubators can be safely stacked. An INC 125 FS (incubator shaker) or INC 125 F (incubator) can be placed on top of the INC 125 FCS (appropriate accessories required), Door lock (optional accessory), Shaking platform available with 20 mm or 25 mm shaking amplitude, Various shelf options available
Service Options: Door hinge on the right, can be changed on request, Installation and Operational Qualification (IQ/OQ) available upon request
Downloads
ika-inc-125-incubators-brochure-en.pdf
