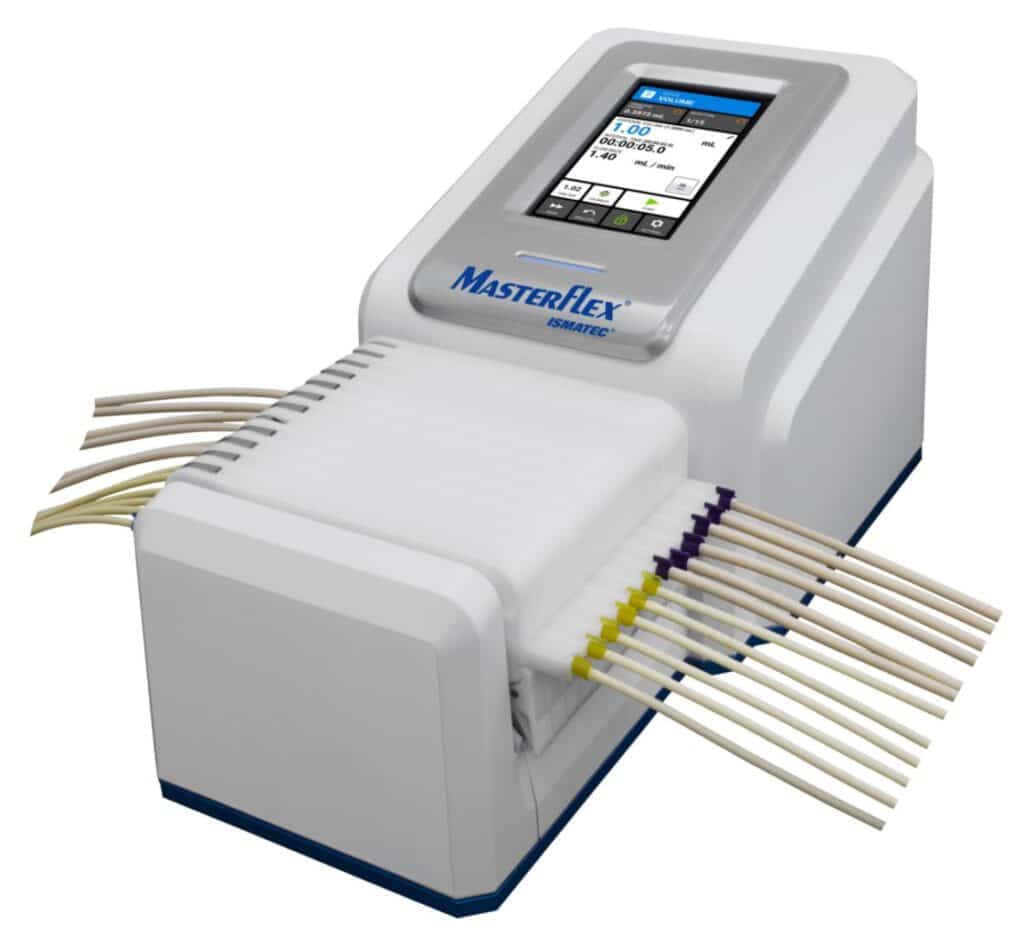

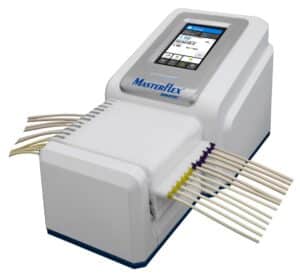

Masterflex Pompes péristaltiques avec 12 canaux IPC-N 78006-44

Marque :Masterflex

Référence :78006-44

Achieve high-accuracy multi-channel flow, with an intuitive touch-screen interface

Replicate same flow for all channels

perfect for auto-analysis, reactor studies, cell line seeding, and research

Planetary drive with 8 stainless steel rollers reduces pulsation, increases flow rate accuracy, and lengthens tubing life

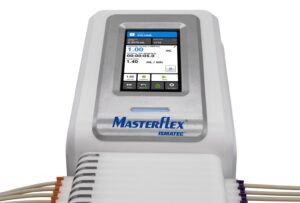

12,7 cm (5") capacitive TFT/RGB touch screen for crisp resolution and a wide viewing angle

Flexible operational control via screen or remote control (analog remote control, serial, or EtherNet/IP)

Three-level user access – gives you the option of controlling who can operate the pump and at what level

Pump lets you save and retrieve commonly used dispense programs for rapid set up

Continuous run, volume dispense, and time dispense modes

batch control and interval/off time in volume and time modes

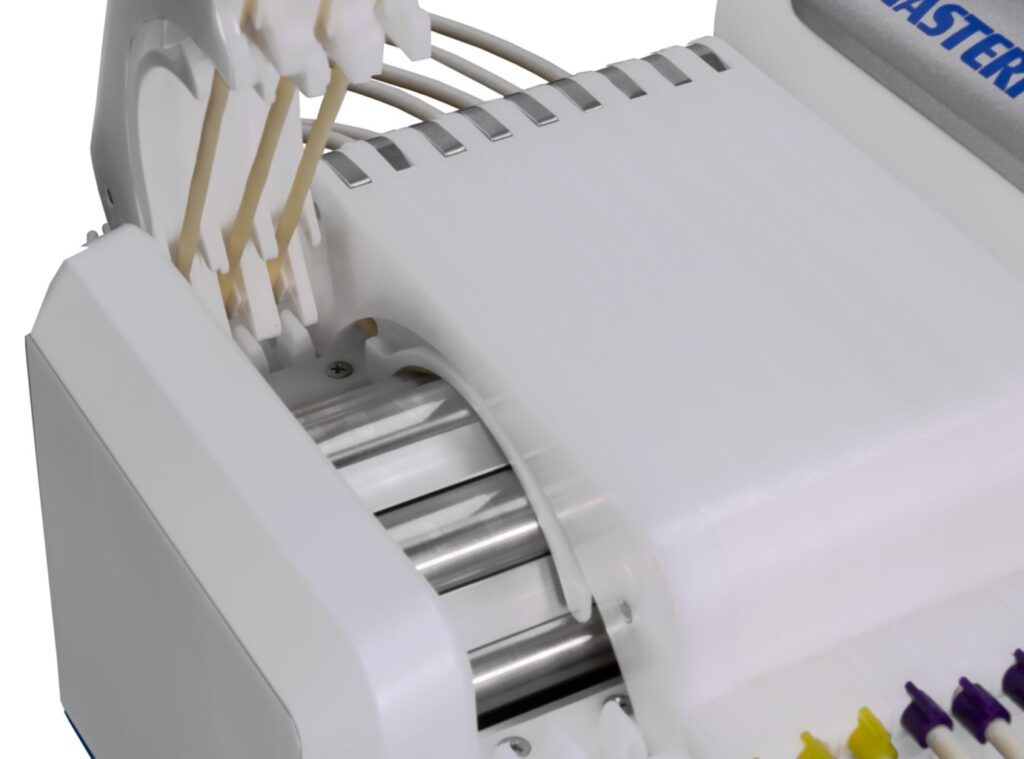

These Ismatec® IPC multichannel pumps feature planetary gears that drive eight stainless steel rollers in unison for smooth rotation and accurate liquid flow

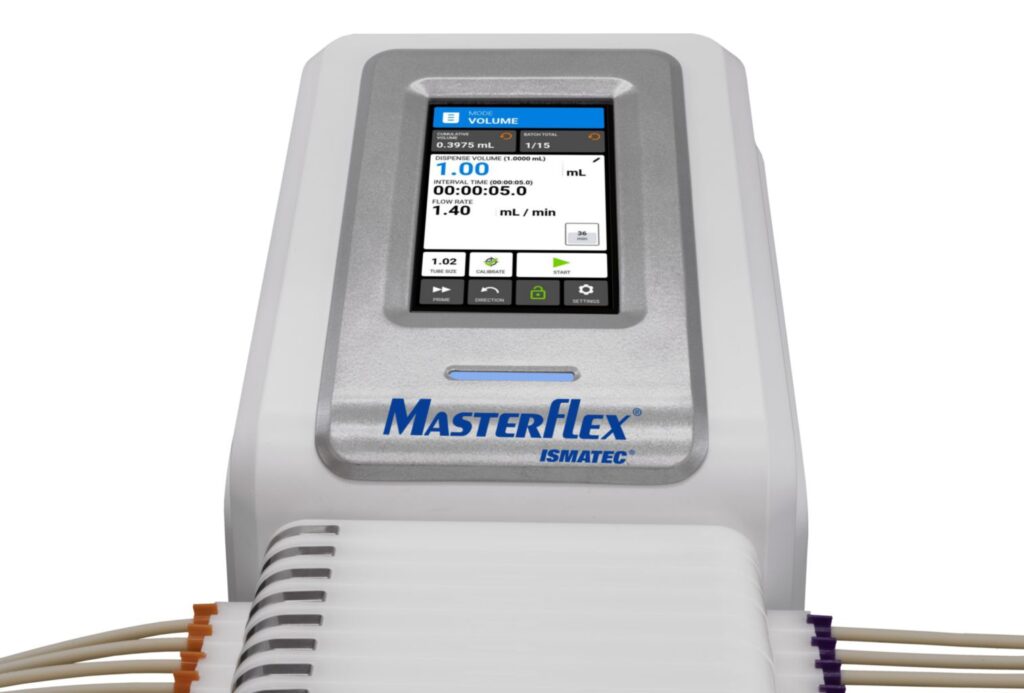

The intuitive touchscreen display shows flow rate or RPM (min⁻¹), allows for easy calibration, features configurable volume or time dispense modes, and lets you save and recall up to 50 programs

Volumetric dispensing features a unique roller positioning system to ensure repeatability

Mix and match tubing sizes and formulations across the channels to suit your application

Included Click’n’go cartridges feature automatic occlusion for simplified use, fewer tubing changes, and reproducible results

Optional pressure lever cartridges offer you the opportunity to manually adjust the back pressure experienced by the tubing / pump combination (order separately)

Pumps feature a variety of built in options for remote communications

EtherNet/IP control is available via RJ45

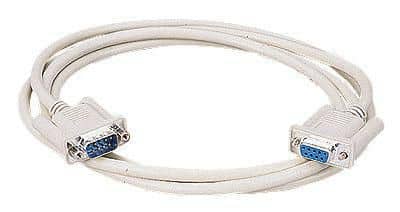

RS-232 serial control is available via a DB9 interface or USB port (USB use requires cable 78006-90)

A 25-pin connector allows analog input and output controls

Lire plus

Débit maximum (ml/min): 132

Nombre de canaux: 12

Vitesse: 45 rpm

4 variations disponibles

€7.470,00 HT

€9.038,70 TTC

Délai sur demande

Livraison offerte à partir de 400 €

Prix avantageux

Service 5 étoiles avant et après la vente

Délai de 3 jours ouvrables pour articles de stock

Débit maximum par canal	45 ml/min
Vitesse	45 rpm
Nombre de canaux	12
Nombre de rouleaux	8
Presion Max.	1 Bar (17,7 PSI) avec Cartouches Click N Go, 2 Bar (pression LVR)
Suction	>15" en Hg (selon taille et formulation de tuyau)
Régulation	Continue, Distribution de volume, Distribution de temps, A distance
Moteur reversible	Oui
Connectivité	EtherNet/IP (RJ45), Serial (RS-232 via 9-pin Sub D ou USB-A), Analogique I/O (25-pin Sub D)
Opération externe (input)	0 à 20 mA, 4 à 20 mA, 0 à 10V, 0 à 5V, Start/Stop, Direction (CW/CCW), Prime via contact closure
Opération externe (output)	0 à 20 mA, 4 à 20 mA, 0 à 10V, 0 à 5V, Tach output 5V TTL pulse, Drive running, Alarm status
Wifi	Oui
Tuyaux compatibles	Tuyaux Ismatec 2-Stop avec diamètre interne (mm): 0,13 - 0,19 - 0,25 - 0,38 - 0,51 - 0,76 - 1,02 - 1,42 - 1,52 - 1,85 - 2,03 - 2,29 - 2,79 - 3,17
Voltage (50/60 Hz)	90 - 260 VAC adaptateur (24V DC)
Tension	1,2A @ 120 VAC \| 0,6A @ 230 VAC
Type de moteur	Moteur PMDC avec balais
Ecran	Ecran tactile 5"
Régulation de vitesse	± 1% Full Scale
Matériau boîtier	Plastique ABS, aluminium anodisé
Matériau rouleaux	Acier inoxydable, aluminium anodisé
Protection IP	IP31
Agency listings	UL, cUL, CE, RoHS
Casettes	Cartouches POM Click'N'Go (PVDF & pressure lever cassettes en option)
Température d'opération	0 - 40 °C
Température de stockage	-25 - 65 °C
Niveau sonore	< 55 dBA @ 1 m (39")
Dimensions (H x P x L)	200,5 x 391,2 x 193 mm
Poids	6,1 kg
